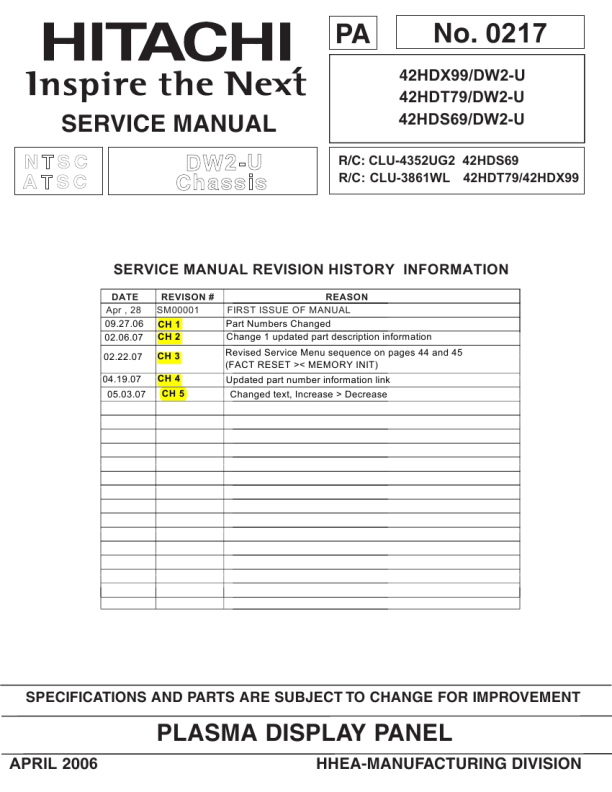

HITACHI 42HDX99
Instrukcja Serwisowa

Front/Rear/Side Panel Controls
FRONT VIEW

42HDS69 Model Only

42HDT79 & 42HDX99 Models Only

REAR/SIDE VIEW

Firmly bind the cables. Thread the square hole with the band.

Hook the band to the claw.

SIDE POWER button Press this button to turn the Plasma Television ON/OFF. It can also be turned ON/OFF by remote control. The �MAIN POWER� button must be at stand-by mode. MENU/SELECT button This button allows you to enter the MENU, making it possible to set TV features to your preference without using the remote. This button also serves as the SELECT button when in MENU mode.

NOTE:

The Rear View of the 55� model is slightly different from the 42� models. One of the differences are the handles that are only present on the 42� models.

SIDE HDMI INPUT (5)
Use the side HDMI input for extrenal devices such as Set-Top-Boxes or DVD players equipped with an HDMI output connection (see page 16 for reference). INPUT/EXIT button Press this button to access the INPUT menu. Press again to exit the MENU mode. CHANNEL selector Press these buttons until the desired channel appears in the top right corner of the TV screen. These buttons also serve as the cursor down ( ) and up ( ) buttons when in MENU mode. VOLUME level Press these buttons to adjust the sound level. The volume level will be displayed on the TV screen. These buttons also serve as the cursor left ( ) and right ( ) buttons when in MENU mode.

POWER button Television MAIN POWER button This power button is for the complete system, and must be turned ON/OFF manually. It is recommended to leave the �MAIN POWER� to ON condition (lights red) for stand-by mode.

The Main Power button is located on the broadside bottom, under the label �MAIN POWER�.

NOTE:

When the �MAIN POWER� button is set to OFF or the TV is unplugged, the clock will stop and may eventually reset itself.
