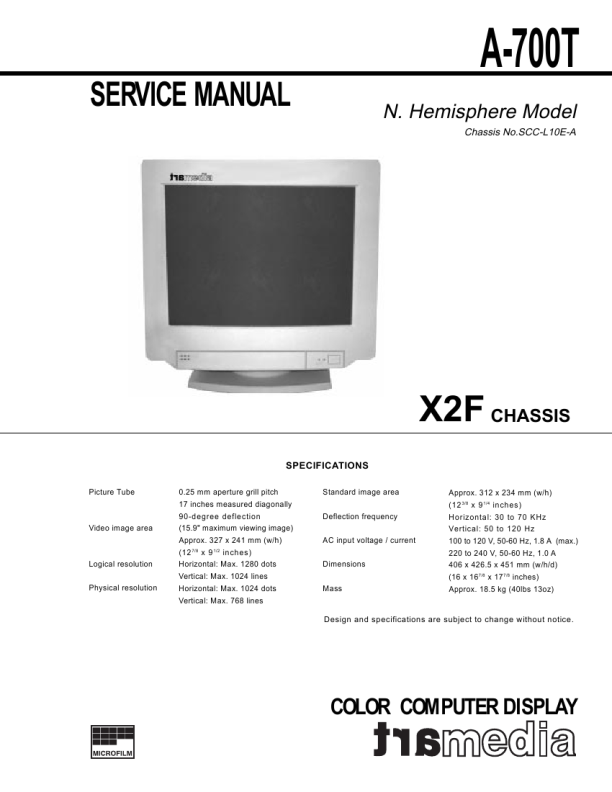

SECTION 1 GENERAL
The instructions given here are partial abstracts from the Operating Instruction Manual. The page numbers shown reflect those of the Operating Instruction Manual.
Table of Contents
Precautions ............................................................................... 3 Getting Started ......................................................................... 3 Adjustments .............................................................................. 4 Power Saving Function ........................................................... 6 Plug and Play ........................................................................... 6 Damper Wire .......................................................................... 6 Use of the Tilt-Swivel ............................................................ 7 Specifications .......................................................................... 7 Troubleshooting ..................................................................... 7
Adjustments
A number of digital controls are provided to allow you to optimize the display parameters to your preferences. You can adjust the picture to your preferences by following the procedure described below. You can adjust all items on the OSD (On Screen Display).
POWER SAVING
Precautions
Installation
� Prevent internal heat buildup by allowing adequate air circulation. Do not place the unit on surfaces (rugs, blankets, etc.) or near materials (curtains, draperies) that may block the ventilation holes. � Do not install the unit near heat sources such as radiators or air ducts, or in a place subject to direct sunlight, excessive dust, mechanical vibration or shock. � Do not place the unit near equipment that generates magnetism, such as a converter or high-voltage power lines.
p Adjustments will be stored automatically.
Push this part to open the control panel cover.
Warning on Power Connection
� Use the supplied power cord.
p The OSD automatically disappears 3 seconds after you release the buttons.
Control Panel
for 100 to 120 V AC
for 220 to 240 V AC
RESET
POWER SAVING
Maintenance
Clean the cabinet, glass panel, and controls with a soft cloth, lightly moistened with a mild detergent solution. Do not use any type of abrasive pad, scouring powder, or solvent, such as alcohol or benzine.
For the customers in U.S.A. If you do not do this, this monitor will not conform to mandatory FCC standards. � Before disconnecting the power cord, wait for at least 30 seconds after turning off the power switch to allow for the discharging of static electricity on the CRT display surface. � After the power has been turned on, the CRT is demagnetized for approximately 5 seconds. This generates a strong magnetic field around the bezel, which may affect the data stored on magnetic tape or disks near the bezel. Place such magnetic recording equipment and tapes/disks at a distance from this unit. The socket-outlet shall be installed near the equipment and shall be easily accessible.
Contrast
The adjustment data becomes the common setting for all input signals.
Horizontal centering
The adjustment data becomes the unique setting for the input signal received.
EN
1
Press the >+/� button. The > OSD (On Screen Display) appears.
1
Press the S�/ı button. The S OSD (On Screen Display) appears.
5 �
Transportation
When you transport this monitor for repairing or shipping, use the original carton box and packing materials.
2
Press the >+/� button to adjust picture contrast. + .... for more contrast � .... for less contrast
2
Press the S�/ı button. � ... to move right ı ... to move left
Getting Started
Before using this monitor, make sure that the following items are included in your package: the monitor, power cord and this operating instruction manual. This monitor will sync to platforms running at horizontal frequencies between 30 and 70 kHz. Step 2: Attach the power cord to the monitor and then to the power outlet.
Brightness
The adjustment data becomes the common setting for all input signals.
Vertical centering
The adjustment data becomes the unique setting for the input signal received.
1
Press the ¨+/� button. The ¨ OSD (On Screen Display) appears.
1
Press the s�/� button. The s OSD (On Screen Display) appears.
Connecting the Computer
Step 1: With the computer switched off, attach the video signal cable to the video output.
to the power outlet Computer Power cord (supplied)
2
Step 3: Turn on the monitor and computer. Step 4: If necessary, adjust the user controls according to your personal preference. The installation is complete.
Press the ¨+/� button to adjust picture brightness. + .... for more brightness � .... for less brightness
2
Press the s�/� button. � ... to move up � ... to move down
to the video output
A-700T
3
4
|
|
|
> |
|
