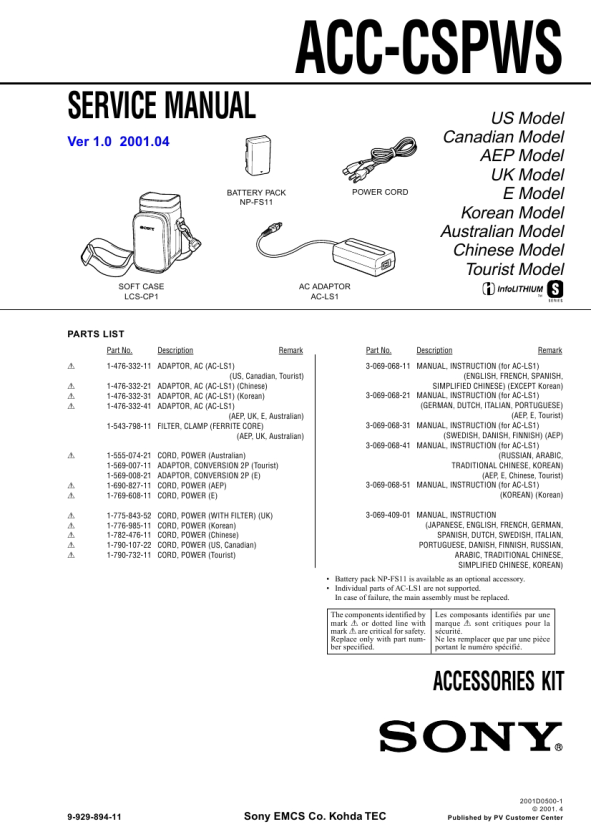

ACC-CSPWS
SERVICE MANUAL
Ver 1.0 2001.04
BATTERY PACK NP-FS11 POWER CORD
US Model Canadian Model AEP Model UK Model E Model Korean Model Australian Model Chinese Model Tourist Model
SOFT CASE LCS-CP1
AC ADAPTOR AC-LS1
PARTS LIST
Part No. 0 0 0 0 Description Remark Part No. Description Remark 1-476-332-11 ADAPTOR, AC (AC-LS1) (US, Canadian, Tourist) 1-476-332-21 ADAPTOR, AC (AC-LS1) (Chinese) 1-476-332-31 ADAPTOR, AC (AC-LS1) (Korean) 1-476-332-41 ADAPTOR, AC (AC-LS1) (AEP, UK, E, Australian) 1-543-798-11 FILTER, CLAMP (FERRITE CORE) (AEP, UK, Australian) 1-555-074-21 1-569-007-11 1-569-008-21 1-690-827-11 1-769-608-11 1-775-843-52 1-776-985-11 1-782-476-11 1-790-107-22 1-790-732-11 CORD, POWER (Australian) ADAPTOR, CONVERSION 2P (Tourist) ADAPTOR, CONVERSION 2P (E) CORD, POWER (AEP) CORD, POWER (E) CORD, POWER (WITH FILTER) (UK) CORD, POWER (Korean) CORD, POWER (Chinese) CORD, POWER (US, Canadian) CORD, POWER (Tourist) 3-069-068-11 MANUAL, INSTRUCTION (for AC-LS1) (ENGLISH, FRENCH, SPANISH, SIMPLIFIED CHINESE) (EXCEPT Korean) 3-069-068-21 MANUAL, INSTRUCTION (for AC-LS1) (GERMAN, DUTCH, ITALIAN, PORTUGUESE) (AEP, E, Tourist) 3-069-068-31 MANUAL, INSTRUCTION (for AC-LS1) (SWEDISH, DANISH, FINNISH) (AEP) 3-069-068-41 MANUAL, INSTRUCTION (for AC-LS1) (RUSSIAN, ARABIC, TRADITIONAL CHINESE, KOREAN) (AEP, E, Chinese, Tourist) 3-069-068-51 MANUAL, INSTRUCTION (for AC-LS1) (KOREAN) (Korean) 3-069-409-01 MANUAL, INSTRUCTION (JAPANESE, ENGLISH, FRENCH, GERMAN, SPANISH, DUTCH, SWEDISH, ITALIAN, PORTUGUESE, DANISH, FINNISH, RUSSIAN, ARABIC, TRADITIONAL CHINESE, SIMPLIFIED CHINESE, KOREAN) � Battery pack NP-FS11 is available as an optional accessory. � Individual parts of AC-LS1 are not supported. In case of failure, the main assembly must be replaced. The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. Les composants identifiés par une marque 0 sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié.
0
0 0 0 0 0 0 0
ACCESSORIES KIT
9-929-894-11
Sony EMCS Co. Kohda TEC
2001D0500-1 © 2001. 4 Published by PV Customer Center
