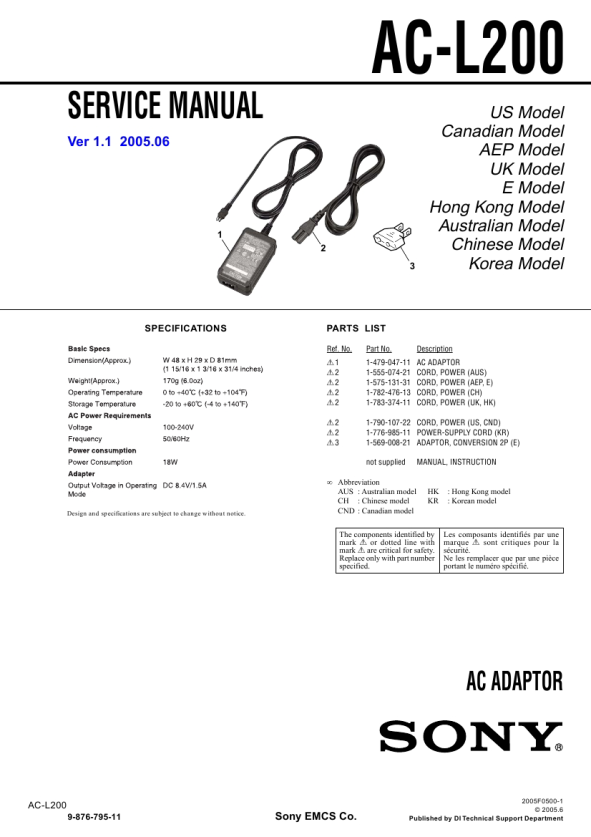

AC-L200
SERVICE MANUAL
Ver 1.1 2005.06
1 2 3

US Model Canadian Model AEP Model UK Model E Model Hong Kong Model Australian Model Chinese Model Korea Model

SPECIFICATIONS

PARTS LIST
Ref. No. 01 02 02 02 02 02 02 03 Part No. 1-479-047-11 1-555-074-21 1-575-131-31 1-782-476-13 1-783-374-11 Description AC ADAPTOR CORD, POWER (AUS) CORD, POWER (AEP, E) CORD, POWER (CH) CORD, POWER (UK, HK)

1-790-107-22 CORD, POWER (US, CND) 1-776-985-11 POWER-SUPPLY CORD (KR) 1-569-008-21 ADAPTOR, CONVERSION 2P (E) not supplied MANUAL, INSTRUCTION

Design and specifications are subject to change without notice.

� Abbreviation AUS : Australian model CH : Chinese model CND : Canadian model

HK KR

: Hong Kong model : Korean model

The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified.

Les composants identifiés par une marque 0 sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié.

AC ADAPTOR

AC-L200
9-876-795-11

2005F0500-1 © 2005.6

Sony EMCS Co.

Published by DI Technical Support Department
