SONY AC-VQ11
Instrukcja Serwisowa

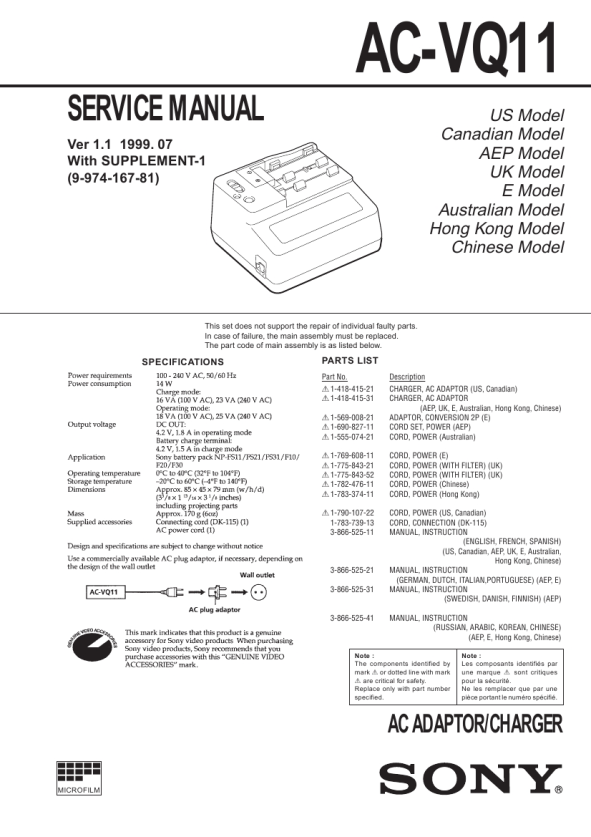

AC-VQ11
SERVICE MANUAL
Ver 1.1 1999. 07 With SUPPLEMENT-1 (9-974-167-81)

US Model Canadian Model AEP Model UK Model E Model Australian Model Hong Kong Model Chinese Model

This set does not support the repair of individual faulty parts. In case of failure, the main assembly must be replaced. The part code of main assembly is as listed below.

SPECIFICATIONS

PARTS LIST
Part No. ! 1-418-415-21 ! 1-418-415-31 ! 1-569-008-21 ! 1-690-827-11 ! 1-555-074-21 ! 1-769-608-11 ! 1-775-843-21 ! 1-775-843-52 ! 1-782-476-11 ! 1-783-374-11 ! 1-790-107-22 1-783-739-13 3-866-525-11 Description CHARGER, AC ADAPTOR (US, Canadian) CHARGER, AC ADAPTOR (AEP, UK, E, Australian, Hong Kong, Chinese) ADAPTOR, CONVERSION 2P (E) CORD SET, POWER (AEP) CORD, POWER (Australian) CORD, POWER (E) CORD, POWER (WITH FILTER) (UK) CORD, POWER (WITH FILTER) (UK) CORD, POWER (Chinese) CORD, POWER (Hong Kong) CORD, POWER (US, Canadian) CORD, CONNECTION (DK-115) MANUAL, INSTRUCTION (ENGLISH, FRENCH, SPANISH) (US, Canadian, AEP, UK, E, Australian, Hong Kong, Chinese) MANUAL, INSTRUCTION (GERMAN, DUTCH, ITALIAN,PORTUGUESE) (AEP, E) MANUAL, INSTRUCTION (SWEDISH, DANISH, FINNISH) (AEP) MANUAL, INSTRUCTION (RUSSIAN, ARABIC, KOREAN, CHINESE) (AEP, E, Hong Kong, Chinese)
Note : Les composants identifiés par une marque ! sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié.

3-866-525-21 3-866-525-31

3-866-525-41

Note : The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified.

AC ADAPTOR/CHARGER
MICROFILM
