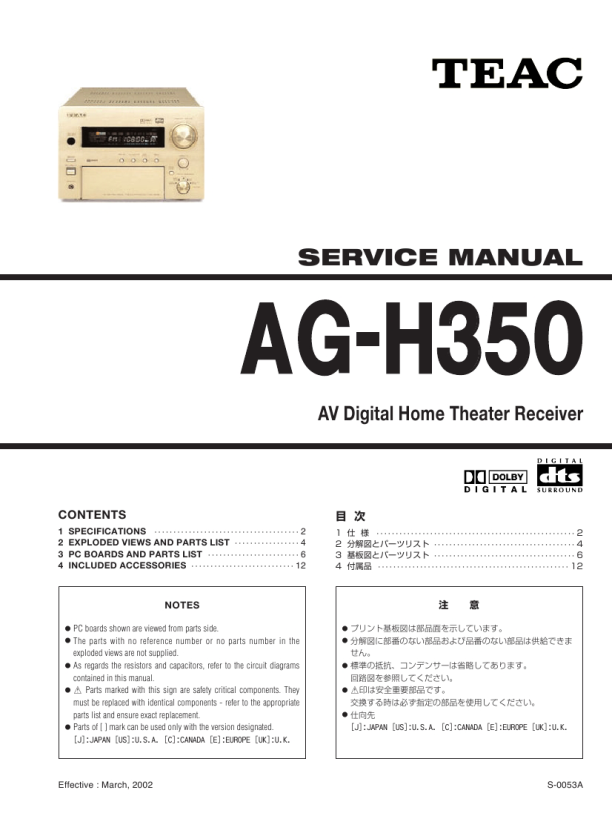

TEAC AGH350
Instrukcja Serwisowa

1 SPECIFICATIONS
���

Amplifier Section
Output Power (Stereo)
50 watts RMS per channel minimum, both channels driven into 8 ohms from 20 Hz to 20kHz with no more than 0.9% total harmonic distortion

FM Tuner Section
(Without notes 100.1 MHz, 65 dBf)

Tuning Range:
87.5 MHz � 108.0 MHz (100 kHz steps) [U.S.A./Canada model] 87.5 MHz � 108.0 MHz (50 kHz steps) [Europe/U.K. model] AM Suppression Ratio: 45 dB

Surround Output Power (0.9 % THD, 1 kHz, 8 ohms):
30 + 30 watts (Front) 30 watts (Center) 30 + 30 watts (Rear)

Total Harmonic Distortion (1 kHz):
Mono: 0.4% Stereo: 0.5%

Total Harmonic Distortion (Stereo):
0.02% (at 50 watts, 1 kHz)

Frequency Response:
30 Hz � 15 kHz, +1/ �1.5 dB Stereo Separation (1 kHz): 40 dB

Delay Time:
DOLBY DIGITAL: REAR 0 � 15 ms CENTER 0 � 5 ms DOLBY PRO LOGIC: REAR 15 � 30 ms

Signal-to-Noise Ratio:
Mono: 75 dB Stereo: 70 dB

Audio Input Sensitivity/Impedance: * LINE: 250 mV/47 k ohms Output Level/Impedance:
VCR/TAPE, CDR/MD: 230 mV / 2.2 k ohms

AM Tuner Section
Tuning Range:
530 kHz � 1,720 kHz (10 kHz steps) [U.S.A./Canada model] 522 kHz � 1,620 kHz (9 kHz steps) [Europe/U.K. model] Usable Sensitivity: 55 dB/m

Frequency Response: * LINE: 20 Hz � 65 kHz, +1 / �3 dB Signal-to-Noise Ratio: * LINE: 85 dB (IHF-A) Tone Control:
BASS: ± 10 dB at 100 Hz TREBLE: ± 10 dB at 10 kHz

Total Harmonic Distortion:
0.8% at 85 dB/m

Signal-to-Noise Ratio:
45 dB at 85 dB/m

Digital Audio Section
Sampling Frequency:
32 kHz, 44.1 kHz, 48 kHzz

General
Power Requirements:
120 V AC, 60 Hz [U.S.A./Canada model] 230 V AC, 50 Hz [Europe/U.K. model]

DIGITAL Input Level/Impedance:
COAXIAL: 0.5 Vp-p / 75 ohms OPTICAL: �15 dBm to �21 dBm

Power Consumption:
2.2A [U.S.A./Canada model] 260 W [Europe/U.K. model]

Video Section
Input Sensitivity/Impedance:
1.0 Vp-p / 75 ohms 1.0 Vp-p / 75 ohms

Dimensions (W x H x D)
215 x 143 x 388 mm (8-7/16" x 5-5/8" x 15-1/4") Weight (net): 7.6 kg (16-3/4 lbs)

Output Level/Impedance: Standard Accessories:
AM Loop Antenna x 1 FM T-type Antenna x 1 [U.S.A./Canada model] FM Matching Transformer x 1 [U.S.A./Canada model] FM Lead-type Antenna x 1 [Europe/U.K. model] Remote Control Unit (RC-821) x 1

* LINE means VCR/TAPE, DVD, SAT/AUX, CD-R/MD and CD.
< Improvements may result in specifications and features changing without notice.
