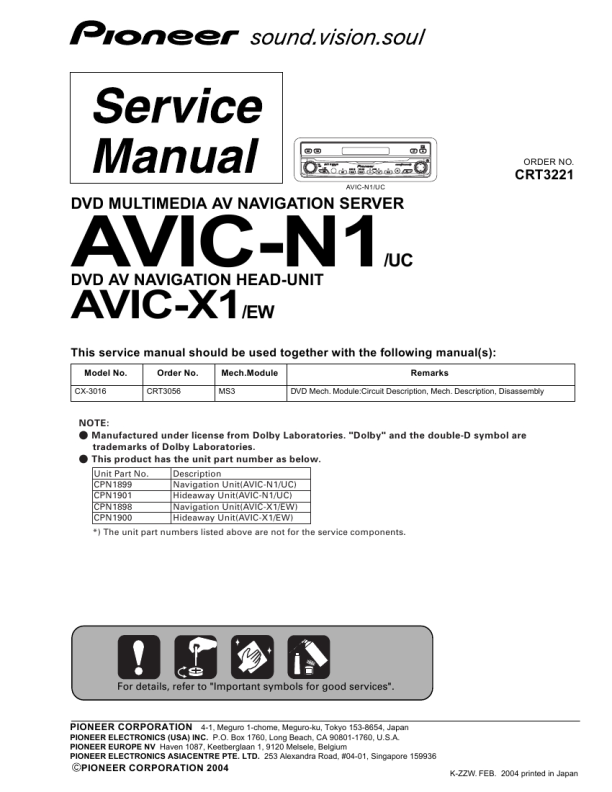

Instrukcja Serwisowa

1 2 3

Touch �BASS� or �TREBLE� in the AUDIO menu. Touch or quency. to select the desired fre-

5

Touch or to select cut-off frequency. Each time you touch or selects cut-off frequencies in the following order: 50 � 80 � 125 (Hz) Only frequencies lower than those in the selected range are output from the subwoofer.

Touch �+� or ��� to adjust the bass or treble level. Each time you touch �+� or ��� increases or decreases the bass or treble level. +6� �6 is displayed as the level is increased or decreased.

Using non fading output
When the non fading output setting is on, the audio signal does not pass through navigation unit�s low pass filter (for the subwoofer), but is output through the RCA output.

Adjusting loudness
Loudness compensates for deficiencies in the low- and high-sound ranges at low volume.

1

Touch �NON FADING� in the AUDIO menu. Only when PREOUT (the subwoofer controller setting in INITIAL menu) is FULL, you can select �NON FADING�. � Rear speaker setting � Page 89

1 2 3

Touch �LOUDNESS� in the AUDIO menu. Touch �ON� to turn loudness on. To turn loudness off, touch �OFF�. Touch or to select a desired level. Each time you touch or selects level in the following order: LOW (low) � MID (mid) � HIGH (high)

2 3

Touch �ON� to turn non fading output on. To turn non fading output off, touch �OFF�. Touch �+� or ��� to adjust the output level of the non fading. +6� �6 is displayed as the level is increased or decreased.

Using subwoofer output
This unit is equipped with a subwoofer output which can be turned on or off. � When the subwoofer output is on, you can adjust the cut-off frequency and the output level of the subwoofer.

Using the high pass filter
When you do not want low sounds from the subwoofer output frequency range to play from the front or rear speakers, turn the HPF (high pass filter) on. Only frequencies higher than those in the selected range are output from the front or rear speakers.

1

Touch �SUB WOOFER� in the AUDIO menu. When PREOUT (the subwoofer controller setting in INITIAL menu) is FULL, you cannot select �SUB WOOFER�. � Rear speaker setting � Page 89

AV Adjustments Chapter 8 Customising the Audio Source Setting

1 2 3

Touch �HPF� in the AUDIO menu. Touch �ON� to turn high pass filter on. To turn high pass filter off, touch �OFF�. Touch or to select cut-off frequency.

2 3 4

Touch �ON� to turn subwoofer output on. To turn subwoofer output off, touch �OFF�. Touch �REVERSE� or �NORMAL� to select the phase of subwoofer output. Touch �+� or ��� to adjust the output level of the subwoofer. +6� �6 is displayed as the level is increased or decreased.

Each time you touch or selects cut-off frequencies in the following order: 50 � 80 � 125 (Hz) When PREOUT (the subwoofer controller setting in INITIAL menu) is SW, the HPF function is effective for front speakers only.

85
