3-1. Setup Menu (BVP-550 series) 3-1-3. Maintenance Menu
3-1-3. Maintenance Menu
The Maintenance menu is used for encoder output level and other adjustments items necessary for camera�s maintenance. The Maintenance menu is not normally accessible. To display this menu, switch setting of the AT-126 board is required. To activate the Maintenance menu, first display the TOP menu. (Boxed items under �Settings� indicate the factory setting.)
Page VBS Ver. Item SYNC Level Y Level Burst Level Chroma Level Q/V Level Setup Level BF Phase SC-H Phase V Blanking Settings _99 to 99 ([XX]) _99 to 99 ([XX]) _99 to 99 ([XX]) _99 to 99 ([XX]) _99 to 99 ([XX]) _99 to 99 ([XX]) _99 to 99 ([XX]) _99 to 99 ([XX]) 19, [20], 21H Contents Adjusts the sync level of camera�s encoder output signal. Adjusts the Y level of camera�s encoder output signal. Adjusts the burst level of camera�s encoder output signal. Adjusts the chroma level of camera�s encoder output signal. Adjusts the Q (or V) level of camera�s encoder output signal. Adjusts the sync level of camera�s encoder output signal. (This setting is valid only for NTSC.) Adjusts the burst phase of camera�s encoder output signal. Adjusts the SC-H phase of camera�s encoder output signal. Adjusts the V blanking width of camera�s encoder output signal. (This setting is valid only for NTSC.) In connection with CCU, the width is fixed to 19H. * For a PAL model, the width is fixed to 25H at all times. Adjusts the volume of V.Saw compensation for the R, G, or B white shading. Adjusts the volume of V.Para compensation for the R, G, or B white shading. Adjusts the volume of H.Saw compensation for the R, G, or B white shading. Adjusts the volume of H.Para compensation for the R, G, or B white shading. Adjusts the R, G, or B white level. Adjusts the volume of V.Saw compensation for the R, G, B or master modulation shading of the lens and prism. j) Turns the V modulation shading on and off. Starts to automatically adjust the white balance. Resets numeric settings to �0� on the White Shading page. (When you press the MENU SEL switch, the �Clear� indication flashes. Press the MENU SEL switch again to execute; press CANCEL button to cancel.)
White Shading
V Saw R/G/B V Para R/G/B H Saw R/G/B H Para R/G/B White R/G/B
_99 to 99 ([XX]) _99 to 99 ([XX]) _99 to 99 ([XX]) _99 to 99 ([XX]) _99 to 99 ([XX])
V MOD R/G/B/M _99 to 99 ([XX]) V MOD Auto White Clear On, [Off] Press MENU SEL switch to execute. Press MENU SEL switch to execute.
j)
When the master modulation shading is adjusted, the V. Saw component for the R and B V-modulation shadings of the prism is simultaneously compensated.

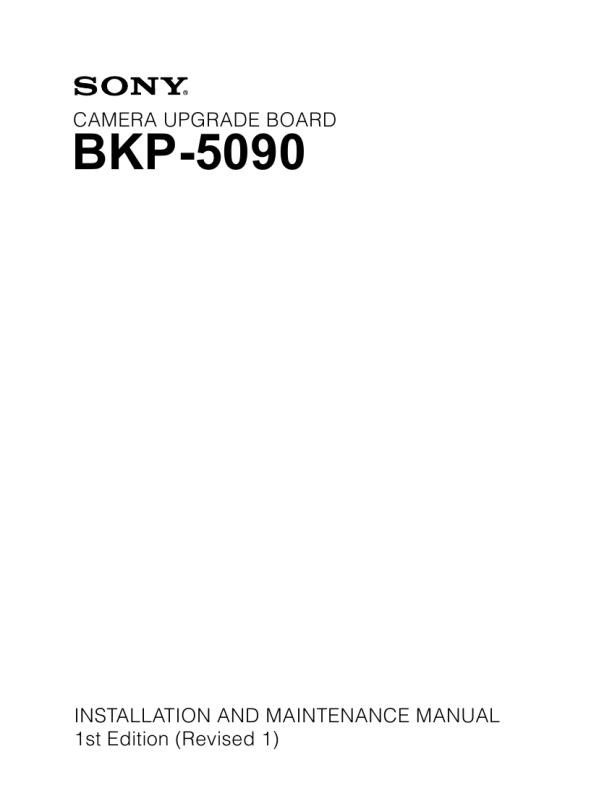

BKP-5090
3-11 (E)
|
|
|
> |
|
