1-7. Troubleshooting
10) Check that one LED turns on after another as follows when the SELECT key is pressed. BKGD (Above the knob) � WIDTH (Above the knob) � COLOR (Above the knob) � KEY (Above the knob) � MATTE (Above the knob) � FADER (Above the knob) � LUM (Below the knob) � SAT (Below the knob) � HUE (Below the knob) � WIDTH (Below the knob) � SOFT (Below the knob) � FADER (Below the knob) � CLIP (Below the knob) � GAIN (Below the knob) � DENSITY (Below the knob) � AUDIO BASE (Below the knob) � NEW EDIT (Below the knob) 11) Check that the dial direction LED REVERSE below the key turns on when the PLAYER SHTL key is pressed. At this time, the STILL (center) and the FORWARD LED must be turned off. 12) Check that the dial direction LED STILL (center) below the key turns on when the PLAYER JOG key is pressed. At this time, the REVERSE and the FORWARD LED must be turned off. 13) Check that the dial direction LED FORWARD below the key turns on when the PLAYER DMC key is pressed. At this time, the STILL (center) and the REVERSE LED must be turned off. 1-42 (E)
14) Check that the dial direction LED REVERSE below the key turns on when the RECORDER SHTL key is pressed. At this time, the STILL (center) and the FORWARD LED must be turned off. 15) Check that the dial direction LED STILL (center) below the key turns on when the RECORDER JOG key is pressed. At this time, the REVERSE and the FORWARD LED must be turned off. 16) Check that the dial direction LED FORWARD below the key turns on when the RECORDER DMC key is pressed. At this time, the STILL (center) and the REVERSE LED must be turned off. 3. Display test Key to be operated : Return : Returns from the display test mode. ALL STOP : Displayed characters change when pressed 1) Enter the display test mode. 2) Check that the following characters change when the ALL STOP key is repeatedly pressed.
>D I S P L A Y � 0 � 0 � 1 � 2 � 3333333333333333 � 4444444444444444 � 5555555555555555 � 6666666666666666 � 7777777777777777 � 8888888888888888 � 9999999999999999 � All characters disappear. � TEST
123456789ABCDEF 000000000000000 111111111111111 222222222222222
3) Press the return key to quit the display test mode.

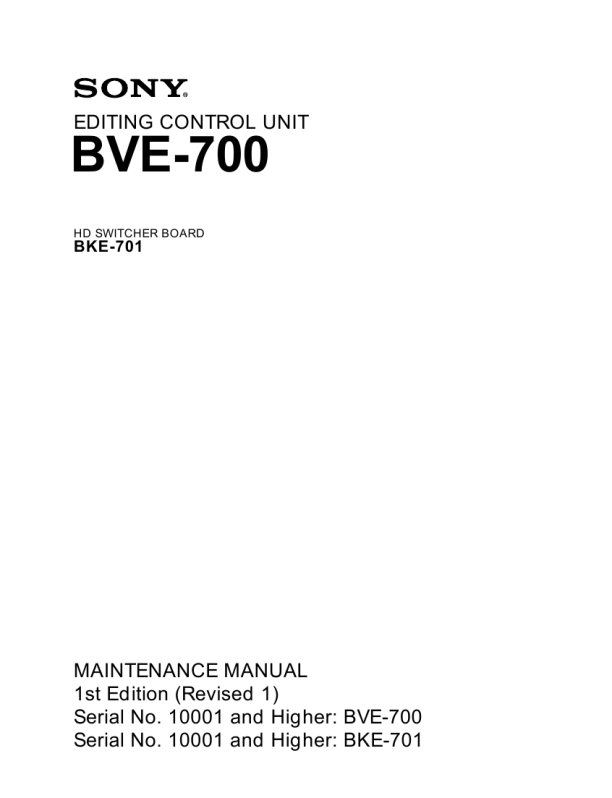

BVE-700
|
|
|
> |
|
