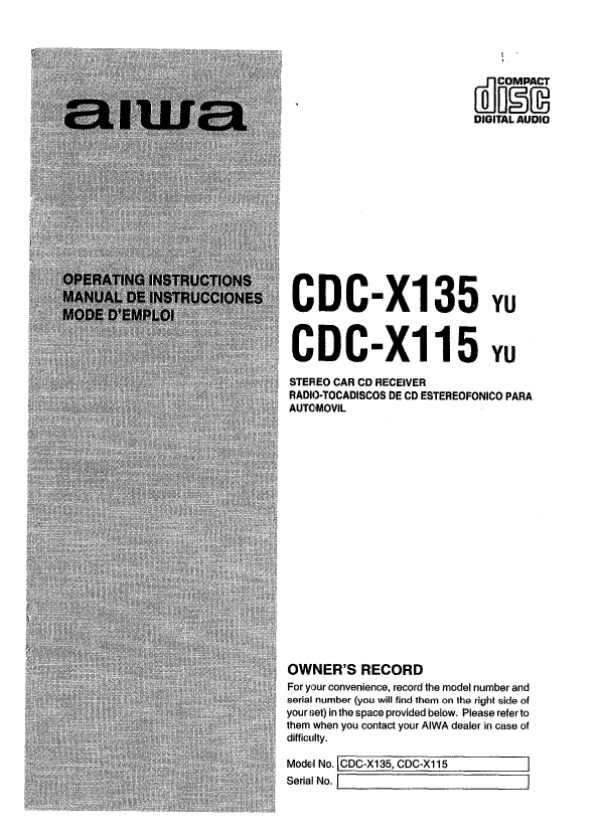

AIWA CDCX135
Instrukcja Obsługi

PRESETTING STATIONS

2 1 3

32 42
1
2 3 4
Press PWR to turn the unit on. Press BAND to select the band from among FM1, FM2, FM3, AM1, and AM2. Tune in the station that you wish to preset with TUNE A or TUNE V. Press one of the preset station buttons 1 to 6 for approximately 2 seconds. While the station you are presetting is being registered in memory, the sound is momentarily muted. The number of the pressed preset station button appears next to the frequency indication.

1 2

Press PWR to turn the unit on. Press BAND to select a desired band from among FM1, FM2, FM3, AMI, and AM2. Prassthedesired preset station button. The number of the pressed preset station button appears next to the frequency indication.

3

Active tuning reception control (ATRC) This unit automatically suppresses FM noise causad by varying signal strength resulting from movement of the car. q The built-in automatic blendtng circuit mixes the left and right channel signals according to the strength of the reception. At the same time, the high-cut circuit activates to maintain the sound quality. q If the reception becomes even weaker, the unit automatically switches to Monaural mode to reduce noise.

Repeat these procedures to preset up to 6 stations each for FM1, FM2, FM3, AM1, and AM2. q You can manually preset stations that have not been selected by auto memory. q If you try to preset a station on a preset station button on which another station of the same band has already been preset, the previously preset station will be erased.

7

ENGLISH
