SANYO CE14AT2E
Instrukcja Serwisowa

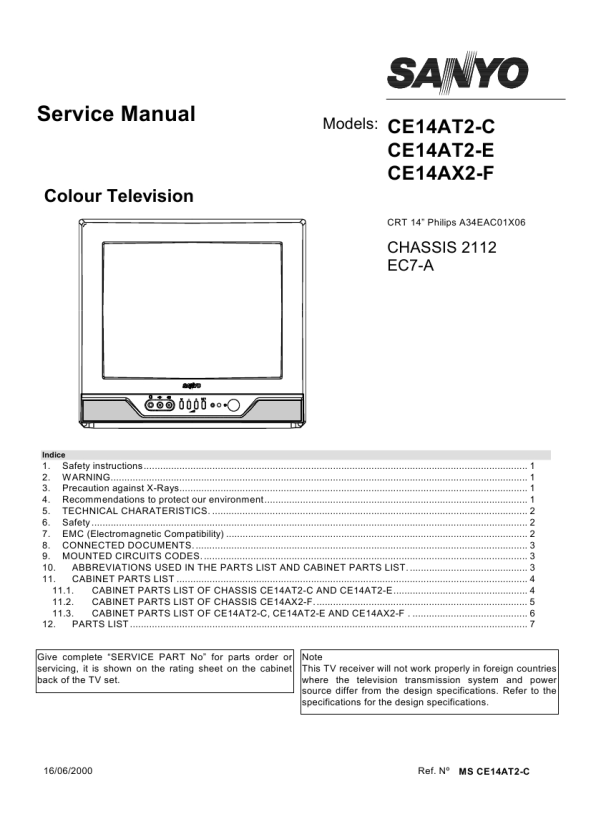

Service Manual SM CE14AT2-C

5. TECHNICAL CHARATERISTICS.
Cathode-ray tubes Tuning-system In-Line, Hi-bipotential gun. 14� (34 cm) Voltage synthesis, 100 programs in non-volatile memory, AFT, Fine-tuning (10 first programs), automatic, semiautomatic and manual channel-search. Band I, channels 2-4 (VHF)=E2-E4 Cable channels S1-S20 Hyperband channels S21-S41 Band III, channels 5-12 (VHF)=E5-E12 Band IV-V, channels 21-69 (UHF)=E21-E69 B/G Model CE14AT2-C B/G-D/K Model CE14AT2-E B/G-L-L� Model CE14AX2-F PAL, NTSC 4.43, N.A.P. (NTSC Amusement by PAL)Models CE14AT2-C, CE14AT2-E PAL/SECAM ntsc 4,43, N.A.P. Model CE14AX2-F Sequential selection from the controls on the set. Direct selection to any program from the remote-control device. Power-rating 1W rms. (10% distortion) 1 of 8 �. External aerial sockets 75 ohms. IEC Mono jack 3,5mm.

Reception system

Colour system Program selection Audio Speakers Aerial Jack for headphones Clock and alarm Function Timer Function AV connectors

Switch on and off of CTV programmable in real time. 1 Scart connector 21 pin CENELEC standard AV, RGB and S_Video. 1 RCA Video input (frontal) 1 RCA Audio input (frontal) Power supply 220 � 240 VAC 50Hz Consumption 47W (maximum consumption). 29W (IEC 107-1) 3,1 W (Stand-by ) Text 1.5 FLOF and LIST level. 1 page memory. Radio 87.5 � 108MHz. 40 memories. Manual and semiautomatic search Hotel mode Hotel mode and Hotel Rental Options by means of Technical Service: NTSC-M

6. Safety
It fulfils the safety requirements established in the regulation: � EN 60065:93

7. EMC (Electromagnetic Compatibility)
It fulfils the EMC requirements established in the regulation: � EN 55013:1990/A12:1994 � EN 55020:1994 � EN 60555-2:1987

2
