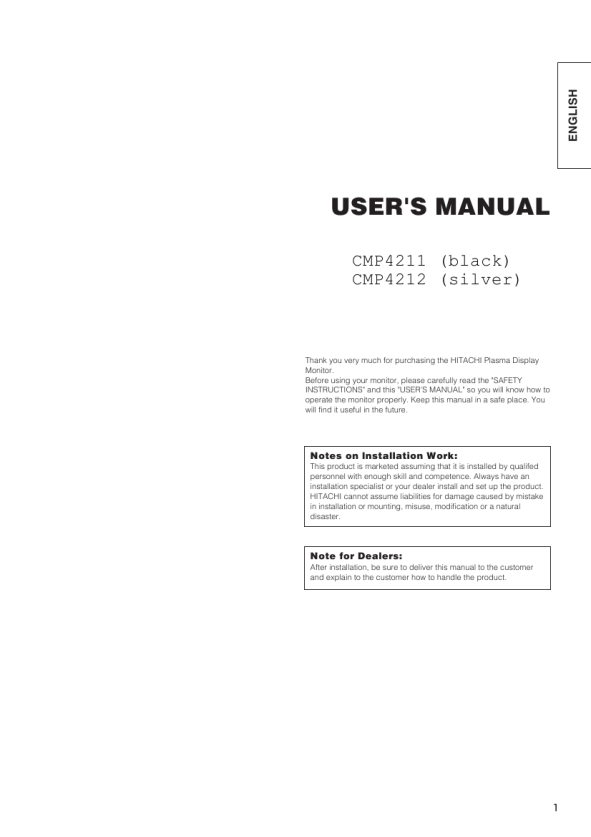

HITACHI CMP4212
Instrukcja Obsługi

OPERATING INSTRUCTIONS Turning Power On and Off
� To turn the monitor power ON, press the main power

Indicating lamp Main power switch

switch on the monitor main unit to ON, and then press the SUB POWER button or the ON/OFF or ON button on the remote control. � To turn the monitor power OFF, press the SUB POWER button or the ON/OFF or OFF button on the remote control, and then press the main power switch on the monitor main unit to OFF.
� During normal use, the main power switch is set in the ON position, and the monitor can then be turned ON/OFF using the SUB POWER button or the ON/OFF button on the remote control.

Indicating lamp
Indicating lamp Off Power status Off Operating When the main power switch is set to OFF. When the main power switch is ON, and the OFF button on the remote control or the SUB POWER button on the underside of the front of the frame is OFF. When the main power switch is ON, and the ON button on the remote control or the SUB POWER button on the underside of the front of the frame is ON. When the main power switch is ON, and the ON button on the remote control or the SUB POWER button on the underside of the front of the frame is ON. However, the state in POWER SAVE mode

Lights red

Off (standby)

Lights green

On

SUB-POWER button Lights orange Off (Power Save)

POWER OFF button POWER ON button POWER ON/OFF button

When the indicating lamp lights in orange or the message �No Sync. Signal�, �Power Save� or �Invalid Scan Freq.� appears on the screen, there is something unusual about the status of reception. See �Power Save Mode� or �Symptoms That Seemingly Appear to be Failures.� 25 27

VOL

ATTENTION
� Avoid repeatedly turning the monitor on and off at short time intervals. Failures might result from such operation. � Turn off the main power switch before leaving the monitor out of use for an extended period of time. � If a power failure occurs while the main unit is running, it would be powered on upon recovery from the failure. Turn off the unit main power switch before leaving the main unit.

RGB 1

RGB 2

MUTE

VOL

AV1

AV2

AV3

AV4

AUTO

PinP

SIZE

RECALL

MENU

OK

ID

ID SET

16
