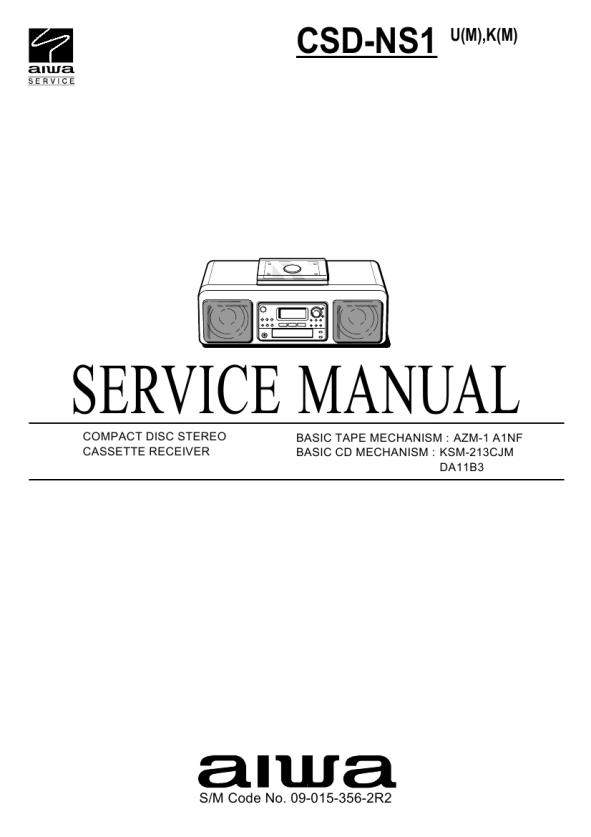

AIWA CSDNS1
Instrukcja Serwisowa

Power supply
Using on AC house current
Connect the AC cord as illustrated below.

Connecting antennas
Connect the AM loop antenna to the AM LOOP terminals on the rear of the unit. Keep the antenna away from metallic objects, electrical equipment and cords.

supplied AC cord

1 to the AC inlet of the unit 2 to an AC outlet (AC 120 V, 60 Hz)

The rated voltage of the unit is 120 V AC.

CAUTION
Use only the supplied AC cord. Use with other cords may result in the risk of fire.

Power economizing (ECO) mode
For better FM reception, connect an outdoor antenna to the FM 75 � terminals.

ECO

Setting the unit to the ECO mode reduces the power consumption while the unit is turned off (standby). � When the clock is set for the first time, the ECO mode is automatically activated. � In the ECO mode, everything on the display goes out and only the POWER 6STANDBY indicator lights up.

To cancel the ECO mode
Press ECO while the power is off. The clock is always displayed while the power is off. To restore the ECO mode, repeat the above. Power consumption in standby mode with ECO mode on: 1.2 W with ECO mode off: 9.4 W
