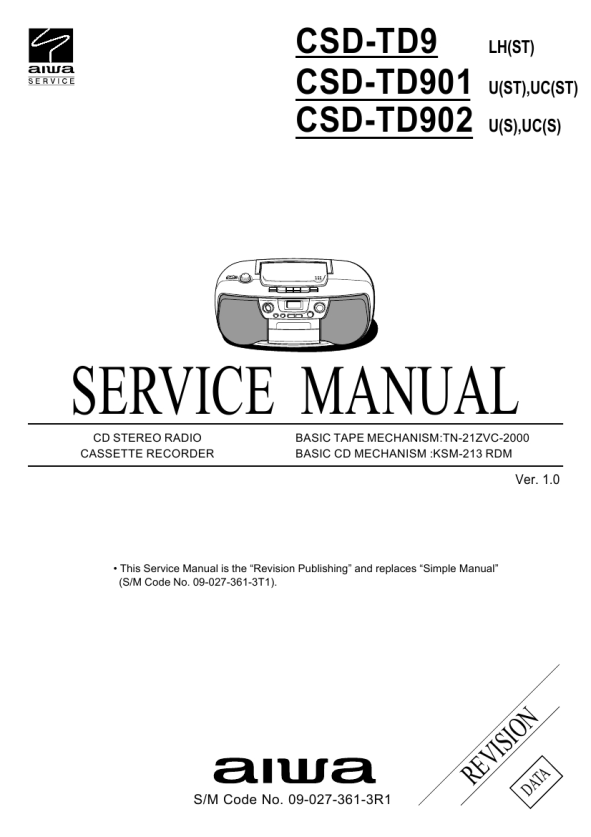

AIWA CSDTD902
Instrukcja Serwisowa

VOLTAGE CHART -1/2
CD SECTION TEST CONDITION: CD PLAY
IC401 (MM1469XH) PIN'S NUMBER 1 CD PLAY 3.46 PIN'S NUMBER 11 CD PLAY 0 PIN'S NUMBER 21 CD PLAY 0 IC601 (TC94A23F) PIN'S NUMBER CD PLAY PIN'S NUMBER CD PLAY PIN'S NUMBER CD PLAY PIN'S NUMBER CD PLAY PIN'S NUMBER CD PLAY PIN'S NUMBER CD PLAY PIN'S NUMBER CD PLAY PIN'S NUMBER CD PLAY PIN'S NUMBER CD PLAY PIN'S NUMBER CD PLAY IC402 (TA2109F) PIN'S NUMBER CD PLAY PIN'S NUMBER CD PLAY TRANSISTOR CD PLAY 2 0 12 0 22 0 3 2.04 13 0 23 0 4 2.01 14 7.61 24 0 5 7.07 15 0 25 2.01 6 5.11 16 0.57 26 0 7 5.11 17 0 27 3.75 8 0 18 3.93 28 0 9 2.01 19 0 29 0 10 2.02 20 0 30 0

1 2.44 11 0 21 0 31 0 41 0 51 2.00 61 2.87 71 2.01 81 0 91 5.06

2 2.44 12 0 22 4.75 32 0 42 4.80 52 1.84 62 2.10 72 2.00 82 2.30 92 0

3 2.44 13 0 23 0 33 0 43 4.55 53 2.00 63 1.68 73 3.88 83 2.20 93 2.60

4 0 14 0 24 0 34 0 44 0.13 54 1.52 64 2.05 74 2.33 84 4.40 94 1.92

5 0 15 0 25 0 35 0 45 4.55 55 0 65 2.06 75 4.55 85 2.20 95 0

6 0 16 0 26 0 36 0 46 4.55 56 1.91 66 2.05 76 0 86 2.31 96 4.88

7 2.44 17 5.02 27 0 37 0 47 0 57 2.00 67 2.00 77 0 87 0 97 2.42

8 0 18 0 28 4.58 38 0 48 3.89 58 4.54 68 2.00 78 1.95 88 0 98 2.43

9 0 19 0 29 0 39 0 49 2.00 59 2.00 69 1.05 79 2.26 89 0 99 2.43

10 0 20 0 30 0 40 4.85 50 1.95 60 2.00 70 1.94 80 4.28 90 4.85 100 2.42

1 4.60 13 1.74

2 2.00 14 2.04

3 2.00 15 2.00

4 2.07 16 2.00

5 2.04 17 2.88

6 0.27 18 2.00

7 3.51 19 2.00

8 2.34 20 0.98

9 1.92 21 2.00

10 3.90 22 2.16

11 2.01 23 0

12 2.07 24 2.00

Q605(DTC124KS) E C B 0 4.81 0

Q604(2SA933S) E C B 0 5.02 0

Q603(DTC124XS) E C B 0 0 0.61

-26-
