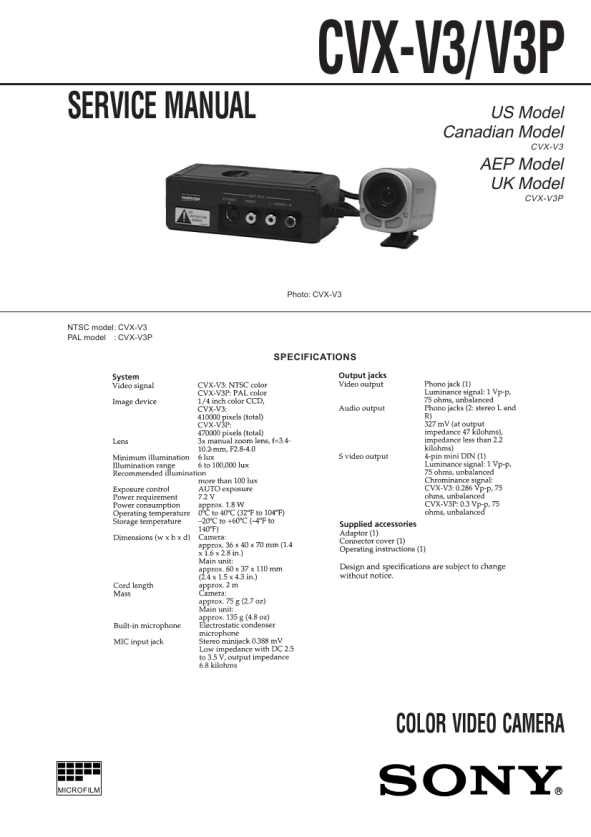

SONY CVX-V3
Instrukcja Serwisowa

1-1-2. Preparations Note 1: For details of how remove the cabinet and boards, refer to �2. DISASSEMBLY�. 1) Connect the equipment for adjustments according to Fig. 5-1-3. 2) Connect the adjustment remote commander to the CN805 on the VA-103 board via CPC-5 (J-6082-351-A).

Pattern box

L

Front side of the lens L = About 40 cm

Fig. 5-1-2

Audio(L) Audio(R)

Color monitor Video CPC-5 jig (J-6082-351-A) Remote terminal

Vectorscope 75 � terminated

Camera head

Adjustment remote commander (RM-95) (J-6082-053-B)

CN302 CN805 CN301 Regulated power supply (8.4 V ± 0.1 Vdc) VA-103 board CN803 CN802 CS-53 board CN303 Video/Audio output terminal

CN801 CN601

Note 2: In changing data, wait for more than 5 seconds after the set was turned on, then change the data.

Fig. 5-1-3

5-2
