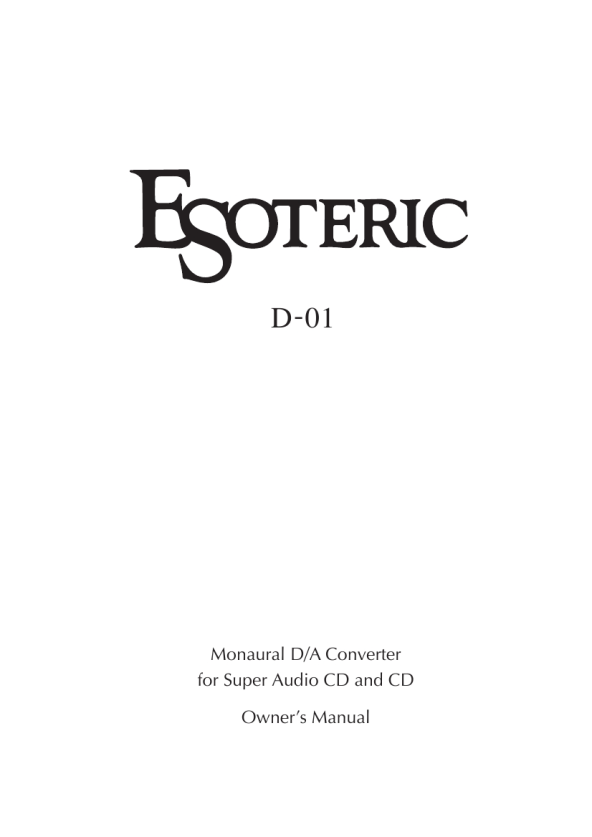

TEAC D01
Instrukcja Obsługi

First Thing To Do
Before anything else, you must select a channel for this unit when you use it for the first time or when you have reset it back to factory settings.

Basic Operation
1 Press the POWER button to turn the unit on.

1 Press the POWER button to turn the unit on.

When the unit is on, the ring surrounding the button lights up. < Also be sure the connected components are turned on. < When the WORD button is set to �IN� or �Rb IN�, �WRD UNLOCK!� or �No Word!� may appear, as it takes several seconds for the unit to lock the word clock input from the WORD SYNC IN terminal. The message will disappear when the unit locks to the word clock.

When the unit is on, the ring surrounding the button lights up. �CH_SEL>� appears on the left side of the display. On the right side, �L R� and channel icons alternately appear.

2 Make digital filter, etc. settings. 2 Press the OUTPUT button (+/�) to select a channel.

See pages 12 and 13 for details.

3 Select the input using the INPUT button.

Repeatedly press the button until the channel you want to select appears on the display.

3 Press the INPUT button to confirm the entry.

After selecting the input, play back the source unit. < Always turn off the unit after use. < If the XLR1 or XLR2 is selected and the XLR DUAL signal is input, the indicator turns from blue to violet

If you want to change the channel setting, refer to �Channel Select� in �Changing the Settings� section (page 13).

11
