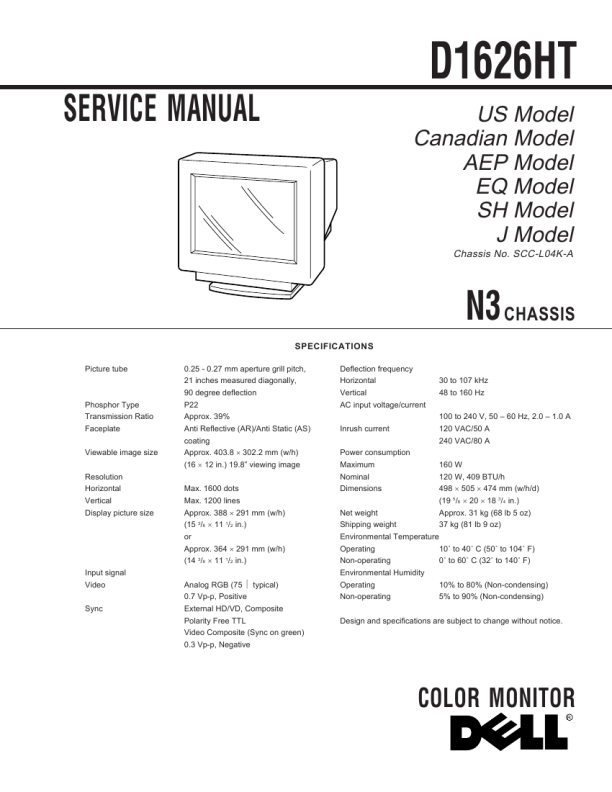

GENERAL
Getting Started Getting Started
Parts and Controls
Front Rear
1 2
(RESET) button (pages 7 and 11)
Resets the adjustments to the factory settings.
5 > (CONTRAST) ?// buttons (page 6)
Adjust the contrast. Operate as the ?// buttons when adjusting other items.
(AUTO SIZING AND CENTERING) button (page 6)
Automatically adjusts the size and centering of the images.
EN F ES D J Cs Ct PL
6 u (POWER) switch and indicator (page 12)
Turns the monitor on and off. The indicator lights up green when the monitor is on, and lights up orange when the monitor is in Power Saving mode.
3 ¨ (BRIGHTNESS) ./> buttons (page 6)
Adjust the picture brightness. Operate as the ./> buttons when adjusting other items.
7 AC IN connector
Provides AC power to the monitor.
4
(MENU) button (page 7)
Displays the MENU OSD.
8 Video input 1 connector (HD15)
Inputs RGB video signals and SYNC signals
9 Video input 2 connector (5 BNC)
signals.
Inputs RGB video signals (0.7 Vp-p, positive) and SYNC
Use of the Tilt/Swivel
With the tilt/swivel, you can adjust this monitor to any desired angle within 180° horizontally and 20° vertically. To turn the monitor vertically and horizontally, hold it at the bottom with both hands as shown below.
Video Input 1 Connector (HD15)
54321 10 9 8 7 6 15 14 13 12 11
15° 90° 90° 5°
Pin No. Signal 1 2 3 4 5 6 7 Red Green (Composite Sync on Green) Blue ID (ground) DDC Ground* Red Ground Green Ground
Pin No. 8 9 10 11 12 13 14 15
Signal Blue Ground DDC +5V* Ground ID (ground) SDA (serial data) Horizontal Sync Vertical Sync SCL (serial clock)
*
Display Data Channel (DDC) standard of VESA.
5
The operating instructions mentioned here are partial abstracts from the Operating Instruction Manual. The page numbers of Operating Instruction Manual remain as in the manual.
