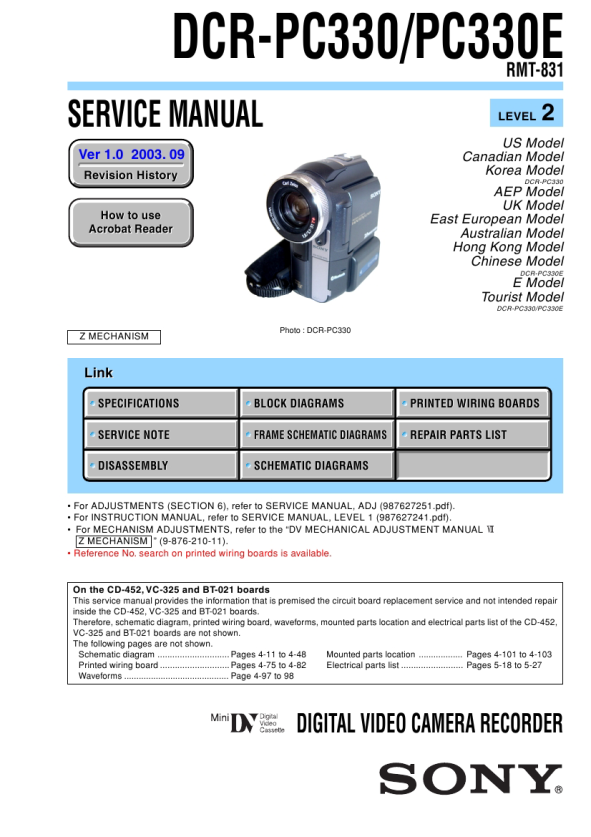

COVER
1-1. SERVICE NOTE
1. POWER SUPPLY DURING REPAIRS

SECTION 1 SERVICE NOTE

In this unit, about 10 seconds after power is supplied to the battery terminal using the regulated power supply (8.4V), the power is shut off so that the unit cannot operate. This following two methods are available to prevent this. Take note of which to use during repairs. Method 1. Use the AC power adaptor (AC-L15, AC-VQ800 etc.). Method 2. Connect the servicing remote commander RM-95 (J-6082-053-B) to the LANC jack, and set the commander switch to the �ADJ� side.

2.
1 2 3 4 5 6 7 8 9 q; qa

TO TAKE OUT A CASSETTE WHEN NOT EJECT (FORCE EJECT)
Open the flash. (When the flash doesn�t open, refer to �3. HOW TO OPEN THE FLASH WHEN THE FLASH DOSEN�T OPEN�.) Refer to page 2-3 to remove the cabinet (F) section. Refer to page 2-3 to remove the cabinet (Rear) section. Refer to page2-4 to remove the cabinet (R) section. Refer to page2-11 to remove the EVF section. Refer to page2-13 to remove the stroboscope section. Refer to page2-15 to remove the lens section. Open the VC-325 board. Refer to page 2-19 to remove the VC-325 board and the mechanism deck. Disconnect CN2502 (27P, 0.3mm) of VC-325 board. Supply +4.5V from the DC power supply to the loading motor and unload with a pressing the cassette compartment.
Loading motor DC power supply (+ 4.5Vdc)

Disconnect the flexible board from CN2502 of VC-325 board.

CN2502

VC-325 board

3.

HOW TO OPEN THE FLASH WHEN THE FLASH DOSEN�T OPEN

1-1
