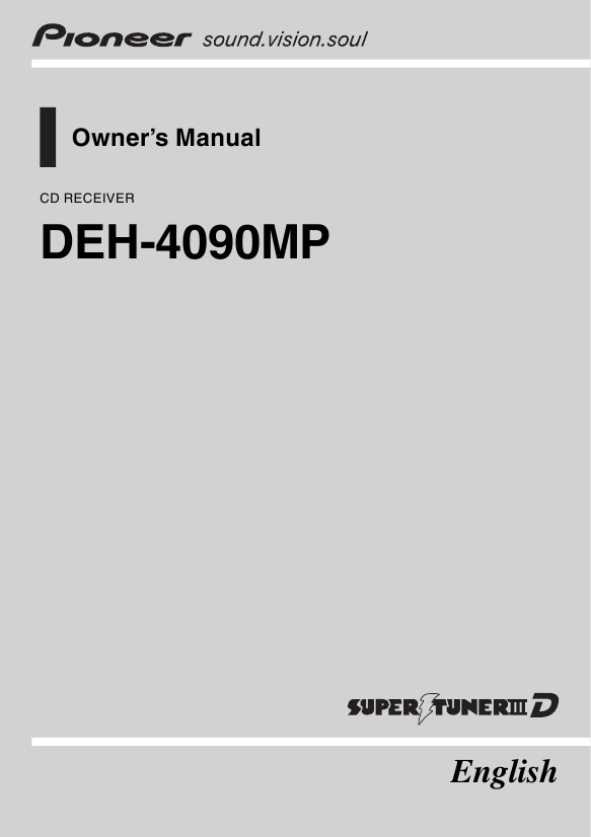

PIONEER DEH-4090MP/XN/ID
Instrukcja Obsługi

Section

Operating this unit Basic Operations
Power ON/OFF
Turning the unit on
% Press SRC to turn the unit on.

02 Tuner
Basic Operations
% Select a band Press BAND/ESC.
# Band can be selected from among FM1, FM2, FM3 or AM.

Turning the unit off
% Press OFF and hold until the unit turns off.

% Manual tuning (step by step) Push MULTI-CONTROL left or right. % Seek tuning Push and hold MULTI-CONTROL left or right for about one second and release.
# You can cancel seek tuning by pushing MULTI-CONTROL left or right. # If you push and hold MULTI-CONTROL left or right, you can skip stations. Seek tuning starts as soon as you release MULTI-CONTROL.

Selecting a source
You can select a source you want to listen to. To switch to the built-in CD player, load a disc in the unit (refer to page 11). % Press SRC repeatedly to switch between the following sources. TUNER (tuner)�COMPACT DISC (built-in CD player)�AUX (AUX)
Notes ! In the following cases, the sound source will not change. � When there is no disc in the unit. � When AUX (auxiliary input) is set to off (refer to page 20). ! AUX is set to on by default. Turn off the AUX when not in use (refer to Switching the auxiliary setting on page 20). ! Charging the portable audio player using car�s DC power source while connecting it to AUX input may generate noise. In this case, stop charging. ! When this unit�s blue/white lead is connected to the vehicle�s auto-antenna relay control terminal, the vehicle�s antenna extends when this unit�s source is turned on. To retract the antenna, turn the source off.

Storing and recalling broadcast frequencies
You can easily store up to six broadcast frequencies for later recall. ! Six stations for each band can be stored in memory. 1 Press LIST. Preset screen is displayed. 2 Use MULTI-CONTROL to store the selected frequency in memory. Turn to change the preset number. Press and hold to store.
# You can also store the frequency in memory by pushing and holding MULTI-CONTROL right.

Operating this unit

3 Use MULTI-CONTROL to select the desired station. Turn to change the station. Press to select.
# You can also change the station by pushing MULTI-CONTROL up or down. # To return to the ordinary display, press BAND/ESC or LIST. # If you do not operate the list within about 30 seconds, the display automatically returns to the ordinary display.
En

Adjusting the volume
% Use MULTI-CONTROL to adjust the sound level.

9
