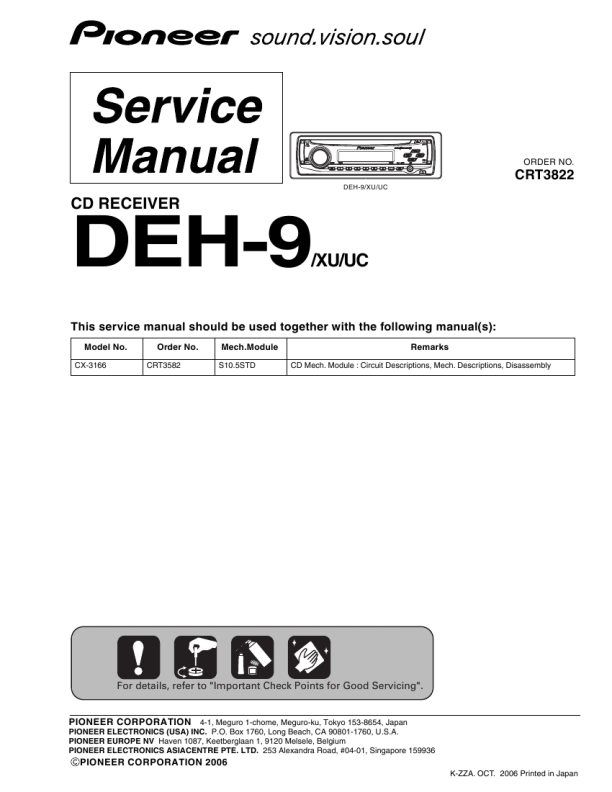

PIONEER DEH-9/XU/UC
Instrukcja Serwisowa

1

2

3

4

7. GENERAL INFORMATION
7.1 DIAGNOSIS
A

7.1.1 DISASSEMBLY
- Removing the Case (not shown) 1. Remove the Case.

- Removing the CD Mechanism Module (Fig.1)

CD Mechanism Module

1
B

Remove the four screws.

Disconnect the connector and then remove the CD Mechanism Module.

1 1

- Removing the Grille Assy (Fig.1)

2

Release the two latchs and then remove the Grille Assy.

1
C

2

1

2

Grille Assy
- Removing the Tuner Amp Unit (Fig.2)

Fig.1

1
D

Remove the two screws.

2

2

2 3 4

Remove the two screws.

Straighten the tabs at two locations indicated. Remove the two screws and then remove the Tuner Amp Unit.

4 4 1

E

1

3 3

Tuner Amp Unit
Fig.2
F

44
