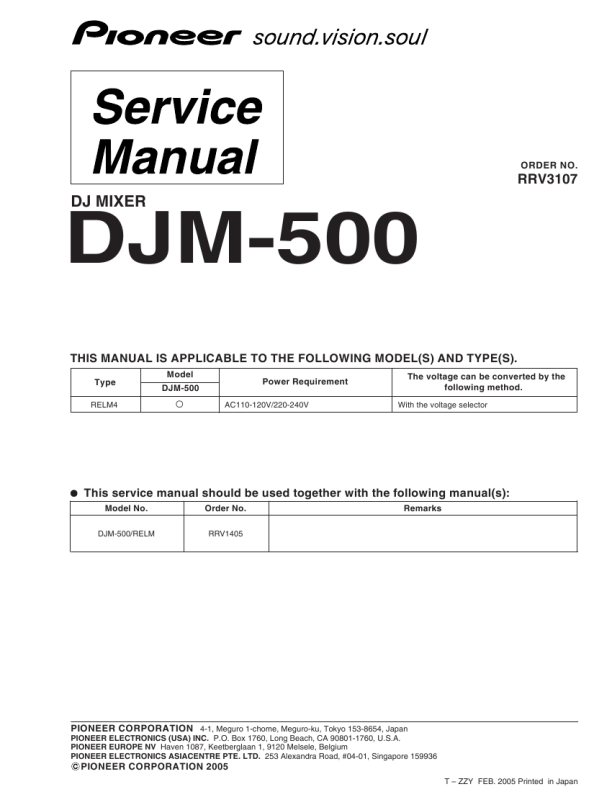

PIONEER DJM-500/RELM4
Instrukcja Serwisowa

1

2

3

4

1. CONTRAST OF MISCELLANEOUS PARTS
NOTES:
A

Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. Screws adjacent to mark on product are used for disassembly. Reference Nos. indicate the pages and Nos. in the service manual for the base model. When ordering resistors, first convert resistance values into code form as shown in the following examples. Ex.1 When there are 2 effective digits (any digit apart from 0), such as 560 ohm and 47k ohm (tolerance is shown by J=5%, and K=10%). 560 56 x 101 561 RD1/4PU 5 6 1 J 47k 47 x 103 473 RD1/4PU 4 7 3 J 0.5 R50 RN2H R 5 0 K 1 1R0 RS1P 1 R 0 K Ex.2 When there are 3 effective digits (such as in high precision metal film resistors). 5.62k 562 x 101 5621 RN1/4PC 5 6 2 1 F

CONTRAST TABLE
DJM-500/RELM4 and DJM-500/RELM are constructed the same except for the following :
Part No. Ref. No. Mark
B NSP P4-8 P4 - 10 P4 - 11 NSP NSP NSP NSP NSP PCB ASSEMBLIES DSP ASSY TERMINAL ASSY VR Assy PHONE JACK ASSY MIC JACK ASSY SUB Assy BAL.OUT ASSY PHONE ASSY PACKING Polyethylene Bag (0.03 x 230 x 340) Polyethylene Bag (0.06 x 230 x 340) IEC 65-6 Caution EXTERIOR Label Display Panel A Display Panel B NSP Cord Clamper

Symbol and Description

DJM-500/ RELM
DWX1786 DWZ1076 DWM2057 DWZ1057 DWZ1066 DWM2058 DWZ1059 DWZ1077

DJM-500/ RELM4
DWX2464 DWZ1148 DWM2210 DWZ1144 DWZ1145 DWM2211 DWZ1147 DWZ1146

Remarks

P4 - 20 P4 - 21

P3 - 8 P3 - 8

Z21-038 Not used Not used

Not used AHG7117 ARM7067

For Accessories

C

P4 - 35 P4 - 57 P4 - 59 P4 - 116

DRW1739 DAH2095 DAH2096 RNE-513

DRW2268 DAH2177 DAH2178 Not used

� For PCB ASSEMBLIES, Refer to � CONTRAST OF PCB ASSEMBLIES �.

D

2
1 2

DJM-500
3 4
