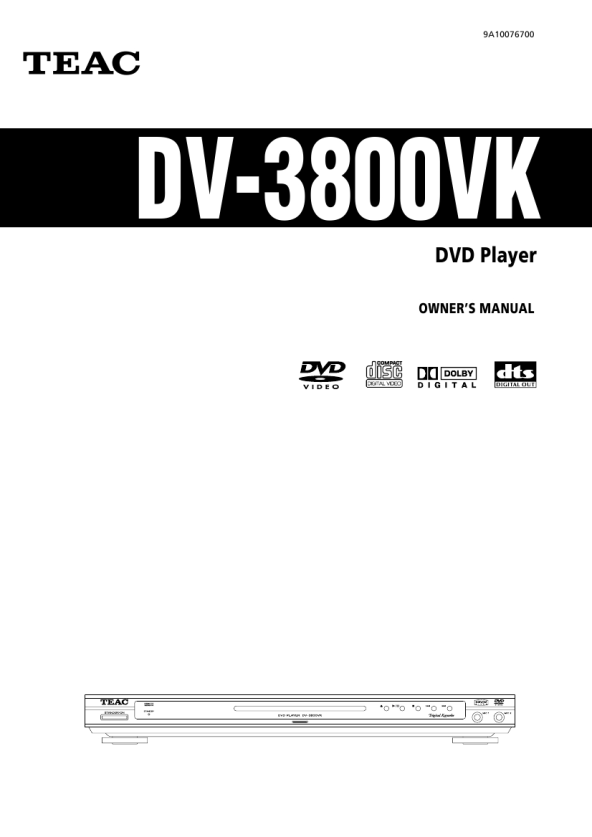

TEAC DV3800VK
Instrukcja Obsługi

6. Press the ZOOM button for the sixth time. The TV screen displays:

Karaoke
Karaoke disc - is DVD, VCD or CD+G disc with recorded vocal and subtitles with indications for singer when to start or stop singing according to current fragment of the song. You must use 1 or 2 microphones for singing (microphones are not included).
Input Karaoke disc and play. Insert the microphones into MIC 1 and MIC 2 sockets. Turn on the microphone; 1.Press the MIC button, to display the Karaoke operation menu. 2.Press LEFT/RIGHT arrows to select the MIC, and turn it ON using UP/DOWN arrows. 3.Press LEFT/RIGHT arrows to select the MIC VOL, and adjust the microphone volume using UP/DOWN arrows.

ZOOM

CURSOR

SELECT

The frame is minified for the third time. 7. Press the ZOOM button again, the frame restores normal size. 8. When the fame is magnified, Press the CURSOR buttons to move the frame. You can enjoy any desired part of the frame.

Progressive/Interlacing Output Mode
You can adjust this player's video output mode according to TV settings.
P SCAN I SCAN

NOTES
You can fully enjoy Karaoke functions with stereo sound system only, some features are not available while using it with mono TV set. Karaoke output is available only in "FL, FR"and "L, R". No Karaoke output available in digital audio. DVD player accepts CD+G, DVD, Super VCD, VCD Karaoke discs and is not compatible with some special discs such as LG Karaoke, etc.
When playing 96K and 192K digital audio on condition that MIC is on, the output is only 48K digital audio.

1. Press the I-SCAN button. Press I-SCAN to switch the video to the interlacing scan output mode. 2. Press the P-SCAN button. Press P-SCAN to switch the video to the Y Pb Pr mode.

NOTES
Please change your TV settings accordingly and connect the cords according to the instructions in pages 7&8. When there are no audio and video outputs if you switched on this player or pressed the above two buttons and theVFD works normally, please check whether this player's progressive-scan or interlacingscan mode corresponds to that of the TV set. To help you to recognize more clearly in which output mode this player is, character appears on the VFD when opening the disc tray or reading a disc. I indicates the interlacing-scan mode, while P indicates the progressive-scan mode. This player's interlacing-scan mode does not support the old-style 100Hz color TV set.

CD+G disc format - extended feature of CD-DA

CD+G disc is a common audio CD Karaoke disc with additional textual or graphical files. The main feature of this format is a high quality phonogram due to additional textual or graphical information located in special (service) segment of the disc, which has not been used during audio (music) recording. It means that sound quality of the song from CD+G disc is identical to the sound quality of CD-DA format. CD+G disc can be used also with almost any Audio CD player - in this case the disc is recognized by machine as a simple CD-DA disc while all additional textual or graphical files are ignored.
Main features of CD+G Karaoke.

These terms are meant to familiarize you with the word of Karaoke. The following are some brief explanations of main CD+G Karaoke features:

20
