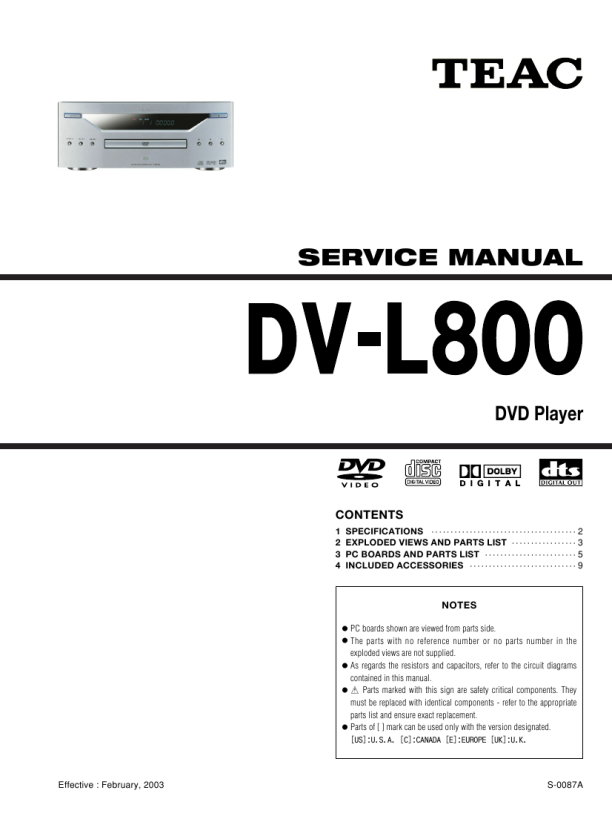

TEAC DV-L800
Instrukcja Serwisowa

1 SPECIFICATIONS
DVD Player
Signal system.............................................................. PAL / NTSC Laser .................... Semiconductor laser, wavelength 650/790 nm Frequency range ..........................DVD : 4 Hz to 22 kHz (fs:48kHz) DVD : 4 Hz to 44 kHz (fs:96kHz) CD/VCD : 4 Hz to 20 kHz Signal-to-noise rating (DVD) .............................................. 105 dB Audio dynamic range (DVD) ................................................ 92 dB Harmonic distortion (DVD) ................................................ 0.008% Wow and flutter ........................................ Below measurable level (less than ± 0.001% (W.PEAK)) Operating conditions .............................. Temperature: 5�C to 35�C Operation status: Horizontal

Type of Discs That Can be Played on This System
This player can playback discs bearing any of the following marks: U.S.A./Canada models

DVDs

Audio CDs, MP3

Europe/U.K. models

Outputs
Video output ............ RCA jack x 1, 1.0 Vp-p, 75 �, negative sync. S-video output .................................................. Mini DIN 4-pin x 1 (Y) 1.0 Vp-p, 75 �, negative sync., (C) 0.286 Vp-p, 75 � Audio output (digital) .................... RCA jack x 1, 1.15 Vp-p, 75 � OPTICAL digital jack x 1 Audio output (analog) .......... RCA jack x 1, 2.0 Vrms (1 kHz, 0 dB) AV connector output ............ SCART jack x 1 (Europe/U.K. model)

DVDs

Video CDs (version up to 2.0)

Audio CDs, MP3

General
Power supply .................. AC 120 V, 60 Hz (U.S.A./Canada model) AC 230 V, 50 Hz (Europe/U.K. model) Power consumption ........................ 14 W (U.S.A./Canada model) 18 W (STANDBY : 2.5 W) (Europe/U.K. model) Weight.................................................................................. 3.6 kg External dimensions (W x H x D) .................. 270 x 110 x 295 mm Accessories ......................................Audio cable (RCA) x 1 stereo Video cable (RCA) x 1 Optical cable x 1 Owner's manual x 1 Remote Control Unit x 1 (U.S.A./Canada model) Batteries (AA, R6, SUM-3) x 2 (U.S.A./Canada model) � Design and specifications are subject to change without notice. � Weight and dimensions are approximate.

Region Codes of The World

2 5 1 6 4 5 3 4 2 2 1

SAFETY INFORMATION
This product has been designed and manufactured according to FDA regulations "title 21, CFR, chapter 1, subchapter J, based on the Radiation Control for Health and Safety Act of 1968", and is classified as a class 1 laser product. There is no hazardous invisible laser radiation during operation because invisible laser radiation emitted inside of this product is completely confined in the protective housings. The label required in this regulation is shown 1. OCAUTION USE OF CONTROLS OR ADJUSTMENT OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE. Optical pickup: Type : HOP-1200 Manufacturer : Hitachi Media Electronics Co., Ltd. Laser output Less than 0.5 mW on the objective lens Wavelength : 770 - 810 nm (CD), 635 - 665 nm (DVD) �2�

1 For U.S.A.
