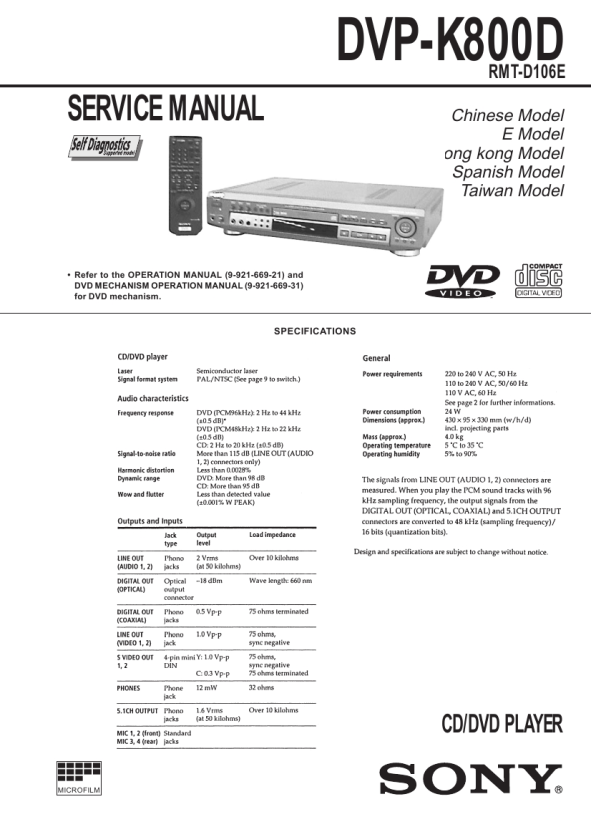

SONY DVPK800D
Instrukcja Serwisowa

0. 1. 2. 3. 4. 5. 6. 7. 8. 9. �. �.

FWD 32TJ RVS 32TJ FWD 500TJ RVS 500TJ FWD 10kTJ RVS 10kTJ FJ0�1 FJ1�0 LJ0�1 LJ1�0 FWD 1TJ RVS 1TJ

32 track jump (N track jump) forward 32 track jump (N track jump) reverse 500 track jump (fine searcj) forward 500 track jump (fine searcj) reverse 10k track jump (direct search) forward 10k track jump (direct search) reverse Layer jump L0�L1, Tracking loop does not turn ON Layer jump L1�L0, Tracking loop does not turn ON Layer jump L0�L1, Tracking loop turns ON Layer jump L1�L0, Tracking loop turns ON 1 track jump, forward 1 track jump, reverse

5-4-5. Manual Adjustment (1)
Manual Adjust 1 SA.042807 SI.00 EMG.00 0. 1. 2. 3. 4. TRK. TRK. TRK. Focus TRK. Offset Offset2 (DVD) Gain2 (CD) Gain Gain

DVD SL 12cm

The manual adjustments in which jitter measurement is not performed, can be executed using this display. When any desired item number is selected, present setting of the item is shown. The adjustment value can be increased or decreased using the arrow mark keys (����). The adjustment value is stored in EEPROM. 0. TRK. Offset The tracking offset adjustment is performed. When adjusting a DVD, the tracking offset is canceled coarsely by SSI33P3720A with the peak bottom that is measured by CXD8730Q. The fine tracking offset adjustment is performed within the CXD8730Q. This adjustment sets the value for the fine adjustment. Because this is the adjustment within the CXD8730Q only, the DC component of the tracking traverse is not chaned. When adjusting CD, this setting value only is changed. The tracking offset adjustment of DVD is performed. (For SSI/33P3720A) Adjustment range: Lower 4 bits = 7 to 1, 8 to F ( +175 to +25mV, 0 to -175mV) The simple AGC adjustment of CD is performed. Adjustment range:Higher 4 bits = x000 to x101(binary) Focus gain is adjusted. Tracking gain is adjusted. When tracking gain in CD mode is adjusted, the simple AGC is set in which 5 different steps of -3.2, -1.6, 0, +1.6, +3.2 dB can be set in CXA2555Q based on the peak bottom that is measured by CXD8730Q. (Auto Tracking Offset) Then the setting inside CXD8730Q is performed. (Auto Tracking Gain) The setting inside CXD8730Q can be performed by this adjustment. When tracking gain in DVD mode is adjusted, only the setting inside CXD8730Q can be performed.

1.

TRK. Offset2 (DVD)

2. 3. 4.

TRK. Gain2 (CD) Focus Gain TRK. Gain

5-24
