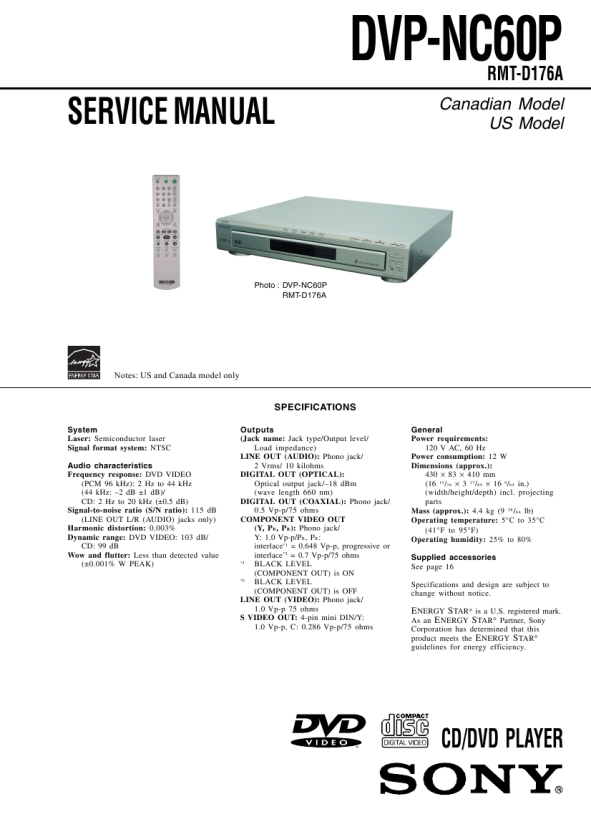

SONY DVPNC60P
Instrukcja Serwisowa

DVP-NC60P

7 Press X/x to select the setting that 10Press X/x to select the type of
matches your TV type.
� If you have a 4:3 standard TV � 4:3 LETTER BOX or 4:3 PAN SCAN (page 63) � If you have a wide-screen TV or a 4:3 standard TV with a wide-screen mode � 16:9 (page 63)

4 Press A on the player, and place a
Playing Discs

Dolby Digital signal you wish to send to your amplifier (receiver).
If your AV amplifier (receiver) has a Dolby Digital decoder, select �DOLBY DIGITAL.� Otherwise, select �D-PCM.�
AUDIO SETUP AUDIO ATT: AUDIO DRC: DOWNMIX: DIGITAL OUT: OFF STANDARD DOLBY SURROUND ON DOLBY DIGITAL: D-PCM DTS: D-PCM 48kHz/96kHz PCM: DOLBY DIGITAL

disc on the disc tray.
To place other discs on the tray, press DISC SKIP and place the discs in the order you want to play them. Each time you press DISC SKIP, the disc tray turns so you can place the discs on the empty compartments. The player plays from the last disc placed on the tray.

Playing Discs

8 Press ENTER.
The Setup Display for selecting the type of jack used to connect your amplifier (receiver) appears.
Is this player connected to an amplifier (receiver) ? Select the type of jack you are using.
YES LINE OUTPUT L/R (AUDIO) DIGITAL OUTPUT NO

Depending on the DVD or VIDEO CD, some operations may be different or restricted. Refer to the operating instructions supplied with your disc.
Disc compartment With the playback side facing down number

11Press ENTER.
�DTS� is selected.
AUDIO SETUP AUDIO ATT: OFF AUDIO DRC: STANDARD DOWNMIX: DOLBY SURROUND DIGITAL OUT: ON DOLBY DIGITAL: D-PCM DTS: OFF 48kHz/96kHz PCM: OFF ON

DISC SKIP

5 Press H.
The disc tray closes. The player starts playback (continuous play). Adjust the volume on the TV or the amplifier (receiver). Depending on the disc, a menu may appear on the TV screen. For DVD VIDEOs, see page 28. For VIDEO CDs, see page 29.

9 Press X/x to select the type of jack
(if any) you are using to connect to an amplifier (receiver), then press ENTER.
If you did not connect an AV amplifier (receiver), select �NO,� then go to step 13. If you connected an AV amplifier (receiver) using just an audio cord, select �YES: LINE OUTPUT L/R (AUDIO),� then go to step 13. If you connected an AV amplifier (receiver) using a digital coaxial or optical cord, select �YES: DIGITAL OUTPUT.�

12Press X/x to select whether or
not you wish to send a DTS signal to your amplifier (receiver).
If your AV amplifier (receiver) has a DTS decoder, select �ON.� Otherwise, select �OFF.�

Hookups Playing Discs
ENTER DISC SKIP

To turn off the player
Press [/1. The player enters standby mode.
z Hint You can have the player turn off automatically whenever you leave it in stop mode for more than 30 minutes. To turn this function on or off, set �AUTO POWER OFF� in �CUSTOM SETUP� to �ON� or �OFF� (page 64).

13Press ENTER.
Quick Setup is finished. All connections and setup operations are complete.

1 Turn on your TV. 2 Press [/1.
The player turns on.

Notes on playing DTS sound tracks on a DVD VIDEO
� DTS audio signals are output only through the DIGITAL OUT (COAXIAL or OPTICAL) jack. � When you play a DVD VIDEO with DTS sound tracks, set �DTS� to �ON� in �AUDIO SETUP� (page 66). � If you connect the player to audio equipment without a DTS decoder, do not set �DTS� to �ON� in �AUDIO SETUP� (page 66). A loud noise may come out from the speakers, affecting your ears or causing the speakers to be damaged.

3 Switch the input selector on your
TV so that the signal from the player appears on the TV screen.
� When using an amplifier (receiver) Turn on the amplifier (receiver) and select the appropriate channel so that you can hear sound from the player.

23

24

Additional operations

To Briefly fast forward 2 the current scene*

Operation Press ADVANCE during playback Press ZOOM repeatedly. Press CLEAR to cancel.

Replacing discs while playing a disc (EXCHANGE)
You can open the disc tray while playing a disc so that you can check which discs are to be played next and replace discs without interrupting playback of the current disc.

Note
Do not push the disc tray to close in step 5, as you may damage the player.

DISC 1-5

Magnify the image*3

Locking the disc tray (Child Lock)
You can lock the disc tray to prevent children from opening it.

DISC SKIP

*1 DVD VIDEOs/DVD-RWs/DVD-Rs only *2 DVD VIDEOs/DVD-RWs/DVD-Rs/ DVD+RWs only *3 Video and JPEG pictures only (except BACKGROUND pictures). You can move the enlarged picture using C/X/x/c. Depending upon the contents of the disc, the zoom function may be canceled automatically when the picture is moved.

When the player is in standby mode, press O RETURN, ENTER, and then [/1 on the
DISC SKIP EXCHANGE

remote.
The player turns on and �LOCKED� appears on the front panel display. The A and EXCHANGE buttons and Z button on the player or the remote do not work while the Child Lock is set.

CLEAR

Note
ADVANCE
You may not be able to use the Replay or Advance function with some scenes.

DISC SKIP

REPLAY

To unlock the disc tray
When the player is in standby mode, press O RETURN, ENTER, and then [/1 again.

Playback quickly or slowly with sound
ZOOM SLOW PLAY DISC SKIP FAST PLAY

You can listen to dialog or sound while playing the current scene quickly or slowly.

Note

During playback, press FAST PLAY or SLOW PLAY.
The speed changes when you press either FAST PLAY or SLOW PLAY.

1 2 3 4 5

Press EXCHANGE.

To Select a disc Stop Pause Resume play after pause Go to the next disc

Operation Press DISC 1�5 on the player Press x Press X Press X or H Press DISC SKIP

The disc tray opens and two disc compartments appear. Even if the player is playing a disc, it doesn�t stop playing.

Even if you select �RESET� under �SETUP� in the Control Menu (page 61), the disc tray remains locked.

To return to normal playback
Press H.

Replace the discs in the compartments with new ones. Press DISC SKIP.
The disc tray turns and another two disc compartments appear.

Notes
� You can only use this function with DVDs/ VIDEO CDs/Super VCDs and DVD-RWs in VR mode only. � �Operation not possible� will appear when maximum or minimum speed is reached. � During Fast Play or Slow Play mode, you cannot change the angle (page 45), subtitle (page 45) and sound (page 42). The sound can only be changed for VIDEO CDs/Super VCDs. � Fast Play and Slow Play functions do not work when playing DTS sound tracks. � You cannot use Fast Play or Slow Play functions when playing a still picture on DVD-RW in VR mode.

Replace the discs in the compartments with new ones. Press EXCHANGE.
The disc tray closes.

Go to the next chapter, Press > track, or scene in continuous play mode Go back to the Press . previous chapter, track, or scene in continuous play mode Stop play and remove Press Z the disc Replay the previous scene*1 Press REPLAY during playback

z Hint While the disc tray is open, � If the playback of the current disc end, the player stops playing. If the disc is played in One Disc Repeat Play mode (page 33), the current disc starts playing again. � In Shuffle Play mode (page 32), titles/tracks/ chapters are reshuffled only on the current disc. � In Program Play mode (page 30), the titles/tracks/ chapters only on the current disc are played.

,continued

25

26

1-6
