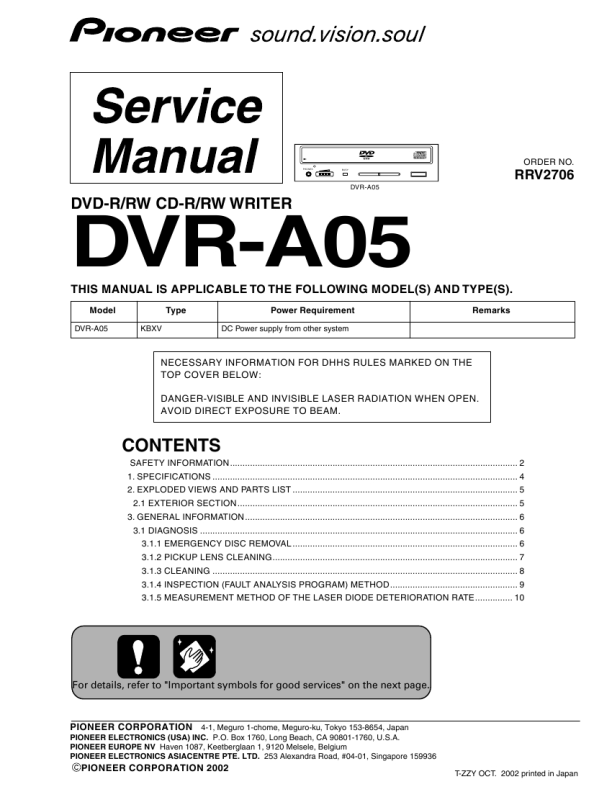

PIONEER DVR-A05/KBXV
Instrukcja Serwisowa

5

6

7

8

3.1.4 INSPECTION (FAULT ANALYSIS PROGRAM) METHOD
Caution: Please use in the Real MS-DOS mode. (The program does not work in the MS-DOS prompt (DOS window) of the Windows.)
A

� Discs to be used
CD-ROM DVD-ROM (Single) DVD-ROM (Dual) CD-R CD-RW DVD-R DVD-RW : GGV1054 : GGV1035 : GGV1036 : GGX1011 : GGV1088 : GGV1049 : GGV1050

� Inspection program disc
FA Program Disc: GGS1034
B

� Installation method
1. Copy the program file "R5A_Fa.exe" and Spec data "R5_N.dat" to an appropriate directory.

� Execution method
1. Start the PC in the MS-DOS mode. 2. Move to the directory to which the program file has been copied. Example: CD DVR105 [enter] (For "C:\DVR105") 3. Execute the program. r5a_fa [enter] : (in case of the Japanese environment) r5a_fa /e [enter] : (in case of the English environment) (In case of English environment, it is difficult to see the frame line if command "/e" is not added.) Operation
To move the window To select the measurement item To execute the measurement To execute all items continuously To quit the program

C

Key Operation
Right or left cursor keys Up or down cursor keys Enter key Space key Esc key

D

� Start-up screen

E

"OK" or "NG" is displayed here.

F

DVR-A05
5 6 7 8
