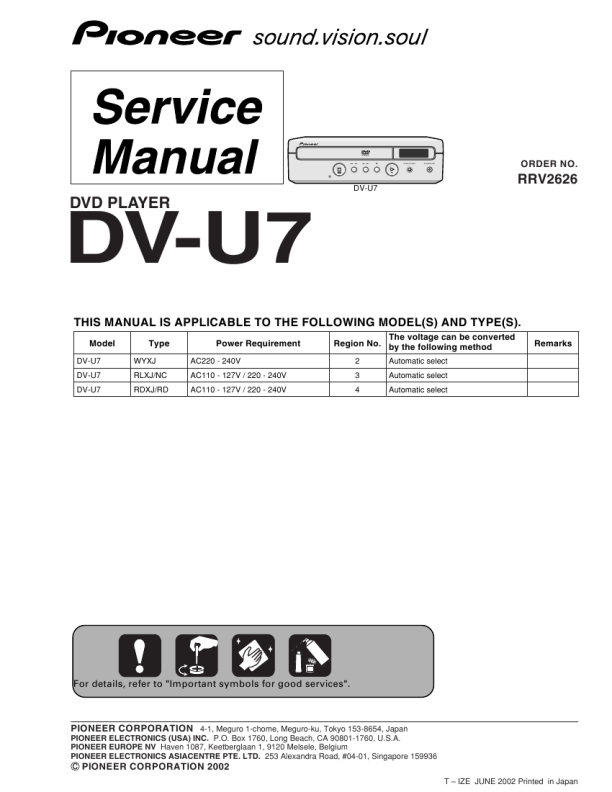

PIONEER DV-U7/WYXJ
Instrukcja Serwisowa

1

2

3

4

7.1.5 DISASSEMBLY
A

1 Tray Lens Assy

2 Top Cover

1 2 3

Power ON. Tray Open (0). Remove the Tray Lens Assy.

1 2

Remove two screws of the Rear Panel. Remove the Top Cover with pull up.

Top Cover

2

1

�2

B

Tray

3
C

2
Tray Lens Assy

2

1

3 Stay

How to Open the Tray by Manual Operating
In the reverse state, release the Sheet, turn the Drive Gear of the Loading Mechanism Assy to the direction of counterclockwise. If the Tray moved toward the front about 2 or 3 cm, pull out the Tray by hands. When disc is put in the Tray, be careful to come off the disc when clamp was released.

D

1 2 3 4 5 6

Remove the L Plate (Screw �1) Remove seven screws of the Stay. Remove the Flexible Cable (17P) from CN3 of the SSIB Assy. Remove three screws of the DVDM Assy. Release the Anti-dust Sheet. Remove the Stay. DVDM Assy

2 4
Driver (Small) Stay
�2

Flexible Cable (17P) 1 L Plate

2 2 4 6 3 2
CN3

2
E

Drive Gear

2 5
Tray is Open Anti-dust Sheet
F

1
SSIB Assy

66
1 2

DV-U7
3 4
