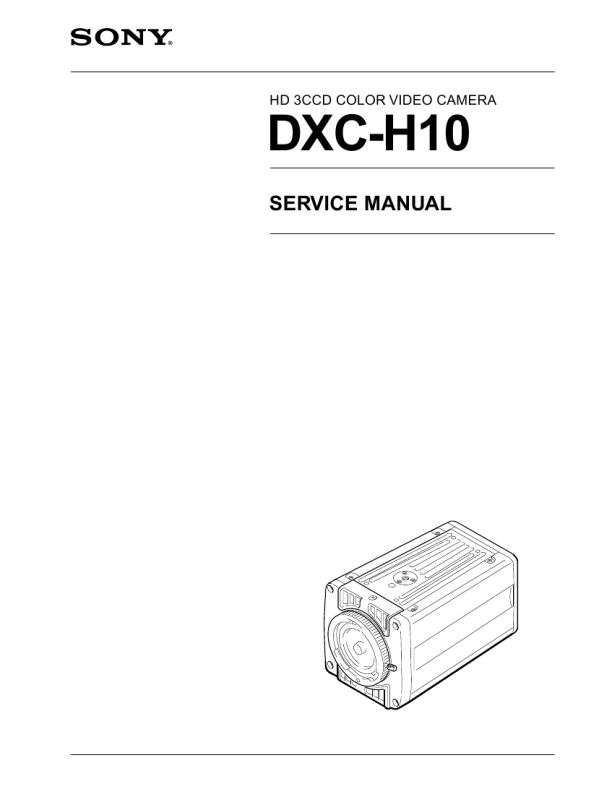

SONY DXC-H10
Instrukcja Serwisowa

Shooting
Basic Shooting Procedure

1 2 3

Turn on the power of the camera and all connected devices. Illuminate the object with proper lighting. Aim the camera at the object and adjust the iris, focus and zoom. Adjust the white balance. For details, see �Adjusting the White Balance� on page 31. Adjust the settings as required. For details, see �Adjusting and Setting with Menus� on page 12. Start shooting.

2

4 5 6

3

4, 5

Chapter 2 Operation

29 (EN)

Shooting Adjusting the Black Balance
Be sure to adjust the black balance when you use the camera for the first time, or after you have not used it for a long period of time, or if there is a sudden change in the temperature.

Operation procedure

1
Chapter 2

If any menu page is displayed on the screen, press the MENU button to turn it off. If a color bar signal is displayed on the screen, press the BARS button to turn it off. Press the BLACK button. The lens iris control is automatically closed, and the black balance is adjusted. If you use a manual-iris lens, close the iris then press the BLACK button. When the adjustment is completed, the massage �AUTO BLACK: OK� appears on the screen. The adjusted black level is stored in the memory and remains even after the power is turned off.

Chapter 2

2 3

21

3
FLASH
CTRL WHITE IRIS

MENU

FUNCTION

UP

DATA

BARS FREQ
60 59.94

DOWN

LENS
BLACK

MONITOR

CAMERA ADAPTOR

Black balance adjustment errors If the black balance adjustment is not successful, an error message appears on the screen. If this happens, take necessary measures and perform steps 1 through 3 again. For details, see �List of Messages� on page 52.

30 (EN)

Chapter 2 Operation

1-14

DXC-H10
