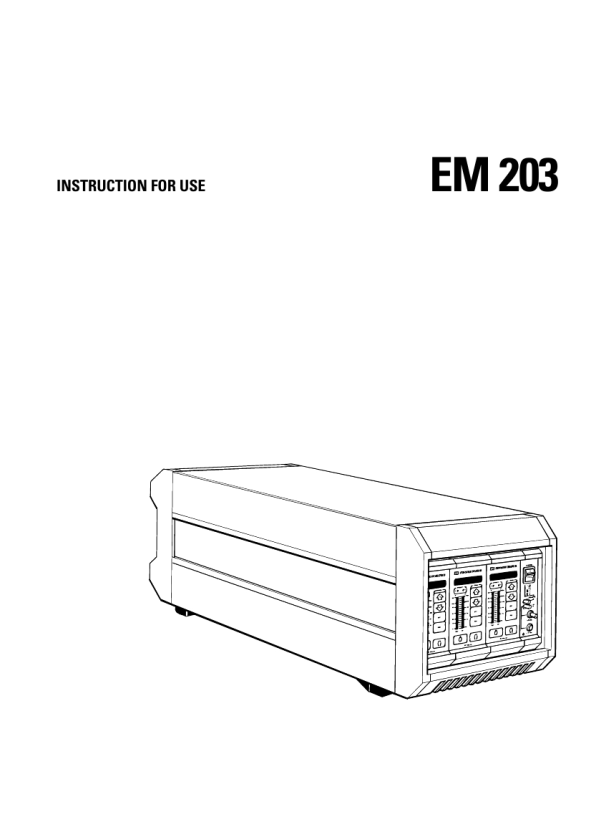

SENNHEISER EM 203
Instrukcja Obsługi

Stand-by

4.1.9

DIVERSITY A B

MENU

Y N SET ESC

MANIPULATION

FUNCTION
In some situations it is useful not only to mute the audio signal at the mixing console but also to switch off the complete RF section of the EM 1046 receiver module. Two reasons of several possible are: � the wish to have only active channels indicated or � the need of fault finding in case of RF interference.interference

DISPLAY

(RX)

Depress the stand-by key and choose or
Y N

The receiver offers two options: Y = yes, switch off receiver N = no, return to normal operation If the receiver has been switched off, the display indicates for about 2 seconds and subsequently goes out, except for a small luninous spot.

Depress the stand-by key once again to put the unit to work and choose
Y N

Y=

yes, return to normal operation. The module is switched on as previously described (see ch. 3.5.) no, the module is to remain in the offstate.

N=

NOTA BENE
Depressing the menu keys during stand-by operation results in the indication of the receiver frequency selected (see ch. 4.1.2). The monitor key remains active!
EM 203, Publ. 10/94 engl

35
