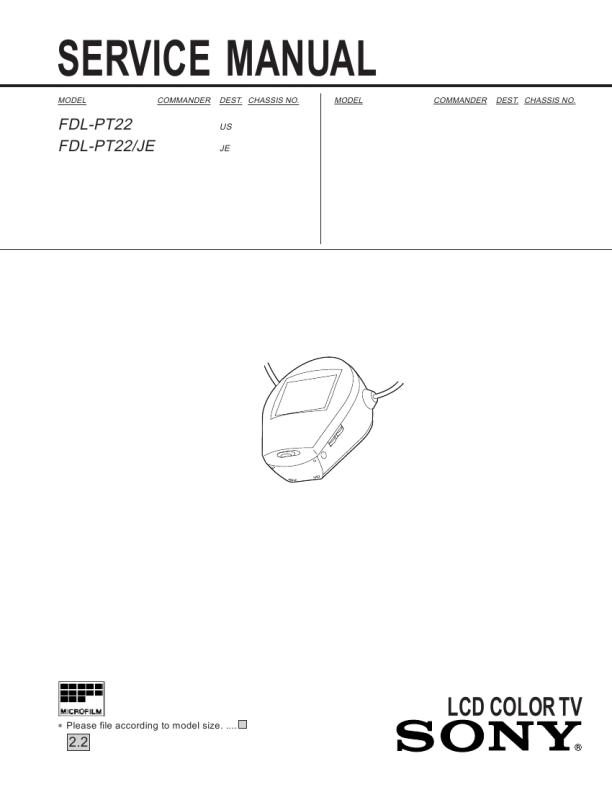

SONY FDL-PT22
Instrukcja Obsługi

SECTION 2 DISASSEMBLY
2-1. CABINET REMOVAL
1. Remove battery cover 8. 2. Push the two hooks in the lower section of the rear cabinet with a pint and the like to undo them.

1Front cabinet assy

2Channel button

3 B board

4A board

Hooks 3. While pressing the rear cabinet, undo hooks on the periphery. 4. Insert a pin into the upper side of the cabinet, and while pushing the hook, tilt the pin to the rear cabinet side. 5. Remove the channel button 2. 6. Remove the speaker cord from the connector. 7. Remove B board 3 and A board 4. 8. Remove one screw 6 (+P x 10) from T board 5. 9. Remove T board 5 from the hooks (one each on both side) on the rear cabinet.

1Screw (+P2 x 10)

5T board

Claw 7Rear cabinet assy

8Battery cover

Front cabinet

Rear cabinet
