CASIO GL110V-1
Instrukcja Obsługi

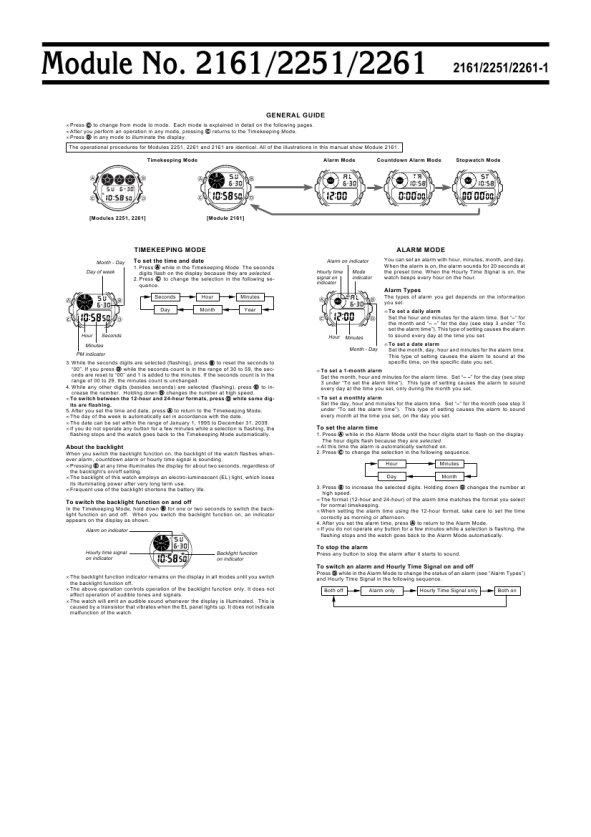

Module No. 2161/2251/2261
GENERAL GUIDE
� Press C to change from mode to mode. Each mode is explained in detail on the following pages. � After you perform an operation in any mode, pressing C returns to the Timekeeping Mode. � Press D in any mode to illuminate the display. The operational procedures for Modules 2251, 2261 and 2161 are identical. All of the illustrations in this manual show Module 2161. Timekeeping Mode Alarm Mode Countdown Alarm Mode

2161/2251/2261-1

Stopwatch Mode

[Modules 2251, 2261]

[Module 2161]

TIMEKEEPING MODE
Month - Day Day of week

ALARM MODE
Alarm on indicator Hourly time signal on indicator Mode indicator

To set the time and date
1. Press A while in the Timekeeping Mode. The seconds digits flash on the display because they are selected. 2. Press C to change the selection in the following sequence.

You can set an alarm with hour, minutes, month, and day. When the alarm is on, the alarm sounds for 20 seconds at the preset time. When the Hourly Time Signal is on, the watch beeps every hour on the hour.

Alarm Types
Seconds Day Hour Month Minutes Year
The types of alarm you get depends on the information you set. � To set a daily alarm Set the hour and minutes for the alarm time. Set ��� for the month and �� �� for the day (see step 3 under �To set the alarm time�). This type of setting causes the alarm to sound every day at the time you set. � To set a date alarm Set the month, day, hour and minutes for the alarm time. This type of setting causes the alarm to sound at the

Hour

Seconds

Hour

Minutes Month - Day

Minutes PM indicator

3. While the seconds digits are selected (flashing), press B to reset the seconds to �00�. If you press B while the seconds count is in the range of 30 to 59, the seconds are reset to �00� and 1 is added to the minutes. If the seconds count is in the range of 00 to 29, the minutes count is unchanged. 4. While any other digits (besides seconds) are selected (flashing), press B to increase the number. Holding down B changes the number at high speed. � To switch between the 12-hour and 24-hour formats, press D while some digits are flashing. 5. After you set the time and date, press A to return to the Timekeeping Mode. � The day of the week is automatically set in accordance with the date. � The date can be set within the range of January 1, 1995 to December 31, 2039. � If you do not operate any button for a few minutes while a selection is flashing, the flashing stops and the watch goes back to the Timekeeping Mode automatically.

specific time, on the specific date you set. � To set a 1-month alarm Set the month, hour and minutes for the alarm time. Set �� �� for the day (see step 3 under �To set the alarm time�). This type of setting causes the alarm to sound every day at the time you set, only during the month you set. � To set a monthly alarm Set the day, hour and minutes for the alarm time. Set ��� for the month (see step 3 under �To set the alarm time�). This type of setting causes the alarm to sound every month at the time you set, on the day you set.

To set the alarm time
1. Press A while in the Alarm Mode until the hour digits start to flash on the display. The hour digits flash because they are selected. � At this time the alarm is automatically switched on. 2. Press C to change the selection in the following sequence.

About the backlight

When you switch the backlight function on, the backlight of the watch flashes whenever alarm, countdown alarm or hourly time signal is sounding. � Pressing D at any time illuminates the display for about two seconds, regardless of the backlight�s on/off setting. � The backlight of this watch employs an electro-luminescent (EL) light, which loses its illuminating power after very long term use. � Frequent use of the backlight shortens the battery life.

Hour Day

Minutes Month

To switch the backlight function on and off
In the Timekeeping Mode, hold down B for one or two seconds to switch the backlight function on and off. When you switch the backlight function on, an indicator appears on the display as shown.
Alarm on indicator

3. Press B to increase the selected digits. Holding down B changes the number at high speed. � The format (12-hour and 24-hour) of the alarm time matches the format you select for normal timekeeping. � When setting the alarm time using the 12-hour format, take care to set the time correctly as morning or afternoon. 4. After you set the alarm time, press A to return to the Alarm Mode. � If you do not operate any button for a few minutes while a selection is flashing, the flashing stops and the watch goes back to the Alarm Mode automatically.

Hourly time signal on indicator

Backlight function on indicator

To stop the alarm

Press any button to stop the alarm after it starts to sound.

To switch an alarm and Hourly Time Signal on and off
� The backlight function indicator remains on the display in all modes until you switch the backlight function off. � The above operation controls operation of the backlight function only. It does not affect operation of audible tones and signals. � The watch will emit an audible sound whenever the display is illuminated. This is caused by a transistor that vibrates when the EL panel lights up. It does not indicate malfunction of the watch. Press B while in the Alarm Mode to change the status of an alarm (see �Alarm Types�) and Hourly Time Signal in the following sequence. Both off Alarm only Hourly Time Signal only Both on
