CASIO HDD600-1A
Instrukcja Obsługi

MA0404-EA

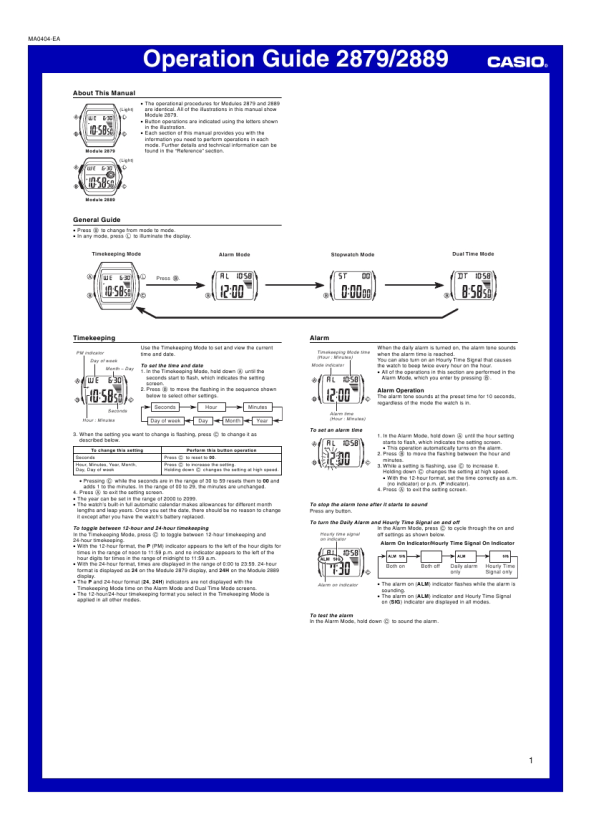

Operation Guide 2879/2889
About This Manual
(Light)

Module 2879 (Light)

� The operational procedures for Modules 2879 and 2889 are identical. All of the illustrations in this manual show Module 2879. � Button operations are indicated using the letters shown in the illustration. � Each section of this manual provides you with the information you need to perform operations in each mode. Further details and technical information can be found in the �Reference� section.

Module 2889

General Guide
� Press B to change from mode to mode. � In any mode, press L to illuminate the display. Timekeeping Mode Alarm Mode Stopwatch Mode Dual Time Mode

Press

.

Timekeeping
PM indicator Day of week Month � Day

Alarm
Use the Timekeeping Mode to set and view the current time and date.
Timekeeping Mode time (Hour : Minutes) Mode indicator

When the daily alarm is turned on, the alarm tone sounds when the alarm time is reached. You can also turn on an Hourly Time Signal that causes the watch to beep twice every hour on the hour. � All of the operations in this section are performed in the Alarm Mode, which you enter by pressing B.

To set the time and date 1. In the Timekeeping Mode, hold down A until the seconds start to flash, which indicates the setting screen. 2. Press B to move the flashing in the sequence shown below to select other settings.
Seconds Day of week Hour Day Month Minutes Year

Alarm Operation
The alarm tone sounds at the preset time for 10 seconds, regardless of the mode the watch is in.
Alarm time (Hour : Minutes)

Seconds Hour : Minutes

3. When the setting you want to change is flashing, press C to change it as described below.
To change this setting Seconds Hour, Minutes, Year, Month, Day, Day of week Perform this button operation Press C to reset to 00. Press C to increase the setting. Holding down C changes the setting at high speed.

To set an alarm time

1. In the Alarm Mode, hold down A until the hour setting starts to flash, which indicates the setting screen. � This operation automatically turns on the alarm. 2. Press B to move the flashing between the hour and minutes. 3. While a setting is flashing, use C to increase it. Holding down C changes the setting at high speed. � With the 12-hour format, set the time correctly as a.m. (no indicator) or p.m. (P indicator). 4. Press A to exit the setting screen.

� Pressing C while the seconds are in the range of 30 to 59 resets them to 00 and adds 1 to the minutes. In the range of 00 to 29, the minutes are unchanged. 4. Press A to exit the setting screen. � The year can be set in the range of 2000 to 2099. � The watch�s built-in full automatic calendar makes allowances for different month lengths and leap years. Once you set the date, there should be no reason to change it except after you have the watch�s battery replaced.

To stop the alarm tone after it starts to sound Press any button. To turn the Daily Alarm and Hourly Time Signal on and off In the Alarm Mode, press C to cycle through the on and Hourly time signal off settings as shown below.
on indicator

To toggle between 12-hour and 24-hour timekeeping In the Timekeeping Mode, press C to toggle between 12-hour timekeeping and 24-hour timekeeping. � With the 12-hour format, the P (PM) indicator appears to the left of the hour digits for times in the range of noon to 11:59 p.m. and no indicator appears to the left of the hour digits for times in the range of midnight to 11:59 a.m. � With the 24-hour format, times are displayed in the range of 0:00 to 23:59. 24-hour format is displayed as 24 on the Module 2879 display, and 24H on the Module 2889 display. � The P and 24-hour format (24, 24H) indicators are not displayed with the Timekeeping Mode time on the Alarm Mode and Dual Time Mode screens. � The 12-hour/24-hour timekeeping format you select in the Timekeeping Mode is applied in all other modes.

Alarm On Indicator/Hourly Time Signal On Indicator

Both on
Alarm on indicator

Both off

Daily alarm only

Hourly Time Signal only

� The alarm on (ALM) indicator flashes while the alarm is sounding. � The alarm on (ALM) indicator and Hourly Time Signal on (SIG) indicator are displayed in all modes.

To test the alarm In the Alarm Mode, hold down C to sound the alarm.

1
