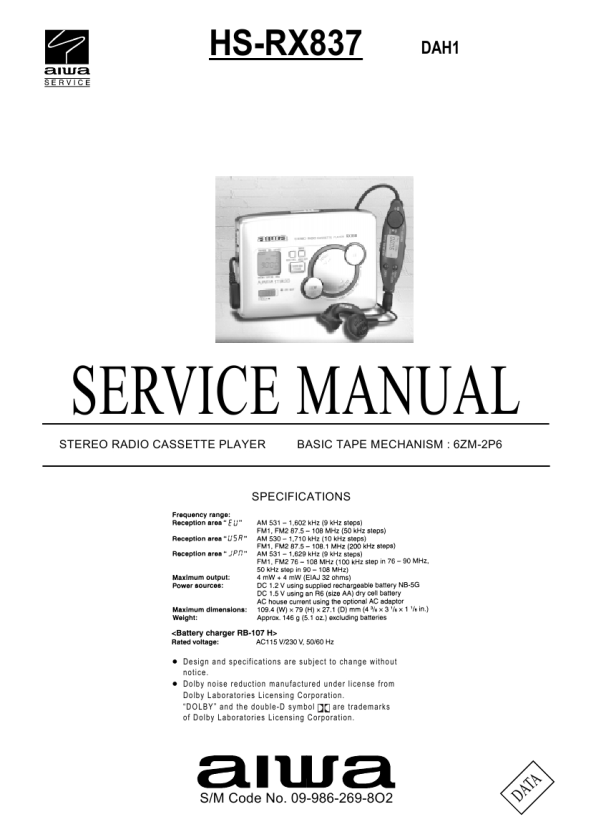

AIWA HS-RX837
Instrukcja Serwisowa

DISASSEMBLY INSTRUCTIONS
1. �REAR, CABINET� Removal
1) Remove the battery lid. (1) 2) Remove the four screws. 3) Insert tweezers or like into the gap of the battery insertion slot as shown, and remove the hook. 4) Remove the cabinet assembly in the direction of the arrow (2). Screws CABI ASSY, REAR

Screws Screws Screws 1 LID, BATT

2

Hook

Tweezers

2. �MAIN BOARD� Removal
1) Remove three screws A. 2) Remove the two screws B, and remove the headphones jack. 3) Remove soldering of the motor terminal. (1) 4) Remove soldering of the battery terminal (-) (2).

B Screws

B Screws

A Screws A Screws MAIN board

2

1

2
