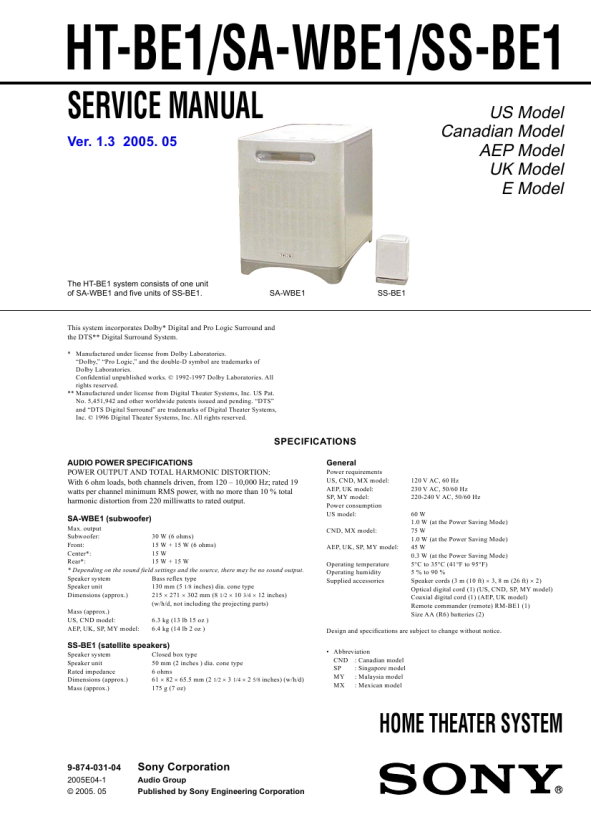

HT-BE1/SA-WBE1/SS-BE1 SECTION 3 DISASSEMBLY
� The equipment can be removed using the following procedure.
SET 3-1. TOP CHASSIS ASSY (Page 5)
3-3.
REAR PANEL ASSY (Page 6) MAIN BOARD (Page 7)
3-2.
DISPLAY BOARD, KEY BOARD (Page 6)
3-4.
Note : Follow the disassembly procedure in the numerical order given.
3-1. TOP CHASSIS ASSY
3 blind panel 5 BVTP 3x10
4 BVTP 3x10 2 BVTP 3x10 0 top chassis assy 9
1 blind panel
7 CN701 8 BVTP 3x10
6 grille frame assy
5
|
