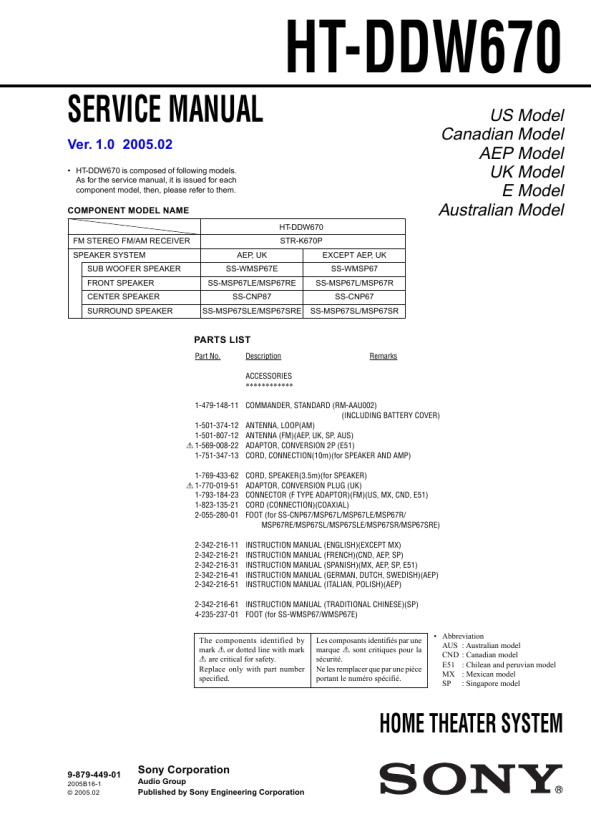

SONY HTDDW670
Instrukcja Serwisowa

HT-DDW670
SERVICE MANUAL
Ver. 1.0 2005.02
� HT-DDW670 is composed of following models. As for the service manual, it is issued for each component model, then, please refer to them.

COMPONENT MODEL NAME
HT-DDW670 FM STEREO FM/AM RECEIVER SPEAKER SYSTEM SUB WOOFER SPEAKER FRONT SPEAKER CENTER SPEAKER SURROUND SPEAKER AEP, UK SS-WMSP67E SS-MSP67LE/MSP67RE SS-CNP87 SS-MSP67SLE/MSP67SRE STR-K670P EXCEPT AEP, UK SS-WMSP67 SS-MSP67L/MSP67R SS-CNP67 SS-MSP67SL/MSP67SR

US Model Canadian Model AEP Model UK Model E Model Australian Model

PARTS LIST
Part No. Description ACCESSORIES ************ 1-479-148-11 COMMANDER, STANDARD (RM-AAU002) (INCLUDING BATTERY COVER) 1-501-374-12 ANTENNA, LOOP(AM) 1-501-807-12 ANTENNA (FM)(AEP, UK, SP, AUS) 0 1-569-008-22 ADAPTOR, CONVERSION 2P (E51) 1-751-347-13 CORD, CONNECTION(10m)(for SPEAKER AND AMP) 1-769-433-62 0 1-770-019-51 1-793-184-23 1-823-135-21 2-055-280-01 CORD, SPEAKER(3.5m)(for SPEAKER) ADAPTOR, CONVERSION PLUG (UK) CONNECTOR (F TYPE ADAPTOR)(FM)(US, MX, CND, E51) CORD (CONNECTION)(COAXIAL) FOOT (for SS-CNP67/MSP67L/MSP67LE/MSP67R/ MSP67RE/MSP67SL/MSP67SLE/MSP67SR/MSP67SRE) INSTRUCTION MANUAL (ENGLISH)(EXCEPT MX) INSTRUCTION MANUAL (FRENCH)(CND, AEP, SP) INSTRUCTION MANUAL (SPANISH)(MX, AEP, SP, E51) INSTRUCTION MANUAL (GERMAN, DUTCH, SWEDISH)(AEP) INSTRUCTION MANUAL (ITALIAN, POLISH)(AEP) Remarks

2-342-216-11 2-342-216-21 2-342-216-31 2-342-216-41 2-342-216-51

2-342-216-61 INSTRUCTION MANUAL (TRADITIONAL CHINESE)(SP) 4-235-237-01 FOOT (for SS-WMSP67/WMSP67E) The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. Les composants identifiés par une marque 0 sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié. � Abbreviation AUS : Australian model CND : Canadian model E51 : Chilean and peruvian model MX : Mexican model SP : Singapore model

HOME THEATER SYSTEM
9-879-449-01
2005B16-1 © 2005.02

Sony Corporation
Audio Group Published by Sony Engineering Corporation
