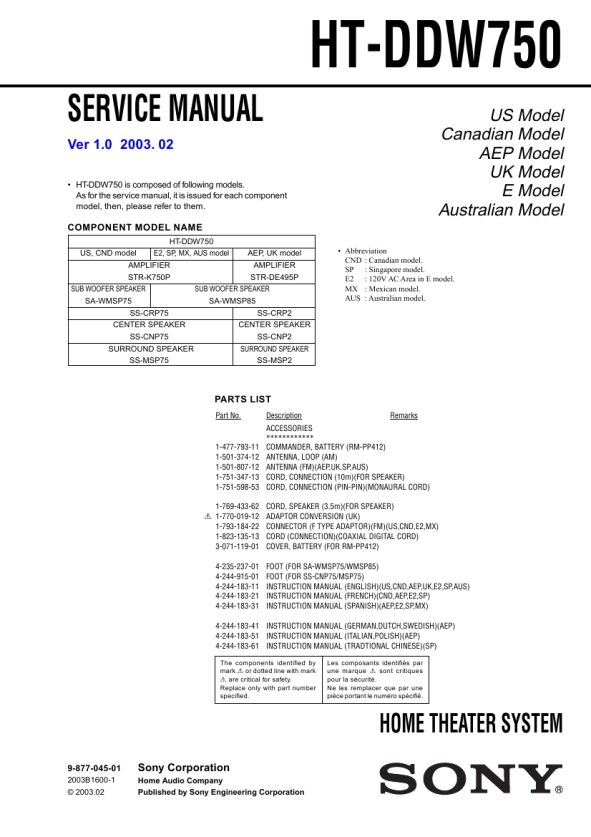

SONY HTDDW750
Instrukcja Serwisowa

HT-DDW750
SERVICE MANUAL
Ver 1.0 2003. 02
� HT-DDW750 is composed of following models. As for the service manual, it is issued for each component model, then, please refer to them.

US Model Canadian Model AEP Model UK Model E Model Australian Model
� Abbreviation CND : Canadian model. SP : Singapore model. E2 : 120V AC Area in E model. MX : Mexican model. AUS : Australian model.

COMPONENT MODEL NAME
US, CND model HT-DDW750 E2, SP, MX, AUS model AEP, UK model AMPLIFIER STR-DE495P SUB WOOFER SPEAKER SA-WMSP85 SS-CRP2 CENTER SPEAKER SS-CNP2 SURROUND SPEAKER SS-MSP2

AMPLIFIER STR-K750P SUB WOOFER SPEAKER SA-WMSP75 SS-CRP75 CENTER SPEAKER SS-CNP75 SURROUND SPEAKER SS-MSP75

PARTS LIST
Part No. Description Remarks ACCESSORIES ************ COMMANDER, BATTERY (RM-PP412) ANTENNA, LOOP (AM) ANTENNA (FM)(AEP,UK,SP,AUS) CORD, CONNECTION (10m)(FOR SPEAKER) CORD, CONNECTION (PIN-PIN)(MONAURAL CORD) CORD, SPEAKER (3.5m)(FOR SPEAKER) ADAPTOR CONVERSION (UK) CONNECTOR (F TYPE ADAPTOR)(FM)(US,CND,E2,MX) CORD (CONNECTION)(COAXIAL DIGITAL CORD) COVER, BATTERY (FOR RM-PP412) FOOT (FOR SA-WMSP75/WMSP85) FOOT (FOR SS-CNP75/MSP75) INSTRUCTION MANUAL (ENGLISH)(US,CND,AEP,UK,E2,SP,AUS) INSTRUCTION MANUAL (FRENCH)(CND,AEP,E2,SP) INSTRUCTION MANUAL (SPANISH)(AEP,E2,SP,MX)

1-477-793-11 1-501-374-12 1-501-807-12 1-751-347-13 1-751-598-53 1-769-433-62 0 1-770-019-12 1-793-184-22 1-823-135-13 3-071-119-01 4-235-237-01 4-244-915-01 4-244-183-11 4-244-183-21 4-244-183-31

4-244-183-41 INSTRUCTION MANUAL (GERMAN,DUTCH,SWEDISH)(AEP) 4-244-183-51 INSTRUCTION MANUAL (ITALIAN,POLISH)(AEP) 4-244-183-61 INSTRUCTION MANUAL (TRADTIONAL CHINESE)(SP)
The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. Les composants identifiés par une marque 0 sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié.

HOME THEATER SYSTEM
9-877-045-01
2003B1600-1 © 2003.02

Sony Corporation
Home Audio Company Published by Sony Engineering Corporation
