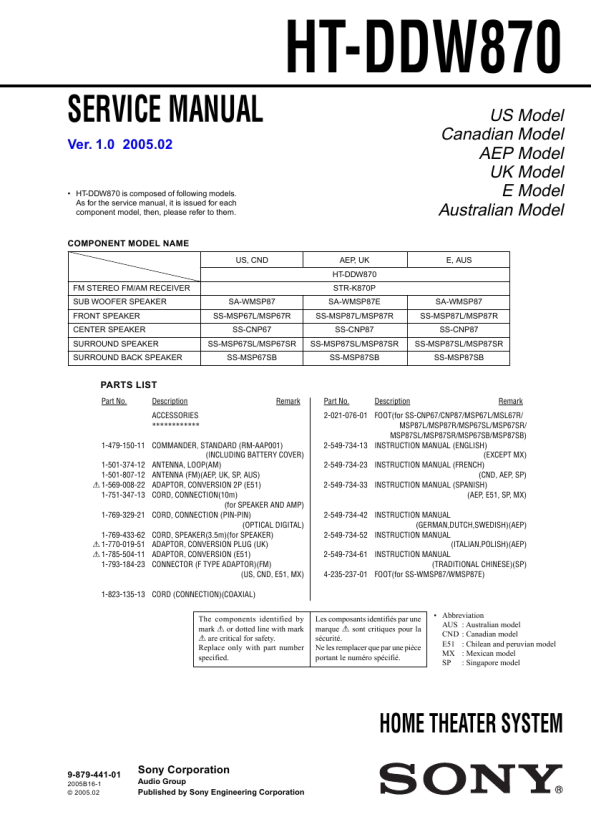

SONY HTDDW870
Instrukcja Serwisowa

HT-DDW870
SERVICE MANUAL
Ver. 1.0 2005.02
� HT-DDW870 is composed of following models. As for the service manual, it is issued for each component model, then, please refer to them.

US Model Canadian Model AEP Model UK Model E Model Australian Model
AEP, UK HT-DDW870 E, AUS

COMPONENT MODEL NAME
US, CND

FM STEREO FM/AM RECEIVER SUB WOOFER SPEAKER FRONT SPEAKER CENTER SPEAKER SURROUND SPEAKER SURROUND BACK SPEAKER SA-WMSP87 SS-MSP67L/MSP67R SS-CNP67 SS-MSP67SL/MSP67SR SS-MSP67SB

STR-K870P SA-WMSP87E SS-MSP87L/MSP87R SS-CNP87 SS-MSP87SL/MSP87SR SS-MSP87SB SA-WMSP87 SS-MSP87L/MSP87R SS-CNP87 SS-MSP87SL/MSP87SR SS-MSP87SB

PARTS LIST
Part No. Description ACCESSORIES ************ 1-479-150-11 COMMANDER, STANDARD (RM-AAP001) (INCLUDING BATTERY COVER) 1-501-374-12 ANTENNA, LOOP(AM) 1-501-807-12 ANTENNA (FM)(AEP, UK, SP, AUS) 0 1-569-008-22 ADAPTOR, CONVERSION 2P (E51) 1-751-347-13 CORD, CONNECTION(10m) (for SPEAKER AND AMP) 1-769-329-21 CORD, CONNECTION (PIN-PIN) (OPTICAL DIGITAL) 1-769-433-62 CORD, SPEAKER(3.5m)(for SPEAKER) 0 1-770-019-51 ADAPTOR, CONVERSION PLUG (UK) 0 1-785-504-11 ADAPTOR, CONVERSION (E51) 1-793-184-23 CONNECTOR (F TYPE ADAPTOR)(FM) (US, CND, E51, MX) 1-823-135-13 CORD (CONNECTION)(COAXIAL) The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. Les composants identifiés par une marque 0 sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié. � Abbreviation AUS : Australian model CND : Canadian model E51 : Chilean and peruvian model MX : Mexican model SP : Singapore model Remark Part No. Description Remark 2-021-076-01 FOOT(for SS-CNP67/CNP87/MSP67L/MSL67R/ MSP87L/MSP87R/MSP67SL/MSP67SR/ MSP87SL/MSP87SR/MSP67SB/MSP87SB) 2-549-734-13 INSTRUCTION MANUAL (ENGLISH) (EXCEPT MX) 2-549-734-23 INSTRUCTION MANUAL (FRENCH) (CND, AEP, SP) 2-549-734-33 INSTRUCTION MANUAL (SPANISH) (AEP, E51, SP, MX) 2-549-734-42 INSTRUCTION MANUAL (GERMAN,DUTCH,SWEDISH)(AEP) 2-549-734-52 INSTRUCTION MANUAL (ITALIAN,POLISH)(AEP) 2-549-734-61 INSTRUCTION MANUAL (TRADITIONAL CHINESE)(SP) 4-235-237-01 FOOT(for SS-WMSP87/WMSP87E)

HOME THEATER SYSTEM
9-879-441-01
2005B16-1 © 2005.02

Sony Corporation
Audio Group Published by Sony Engineering Corporation
