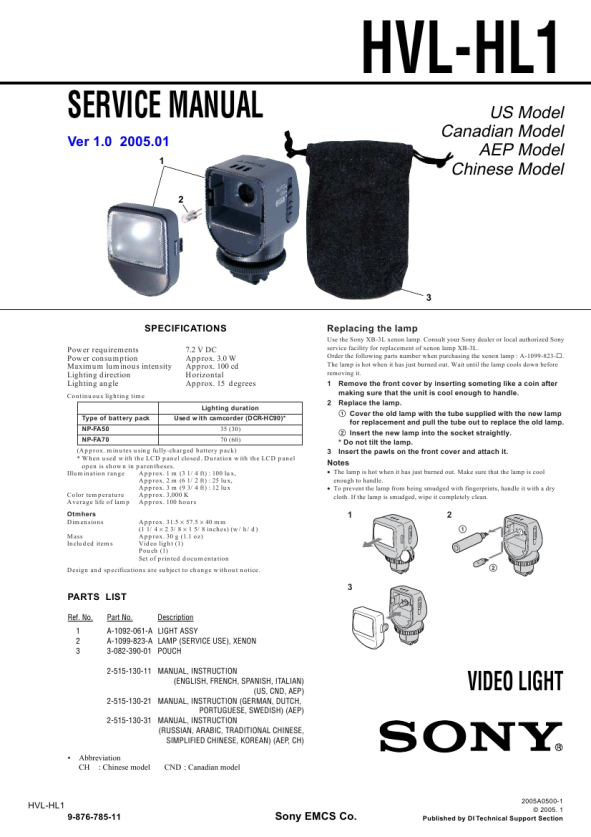

HVL-HL1
SERVICE MANUAL
Ver 1.0 2005.01
1 2
US Model Canadian Model AEP Model Chinese Model
3
SPECIFICATIONS
Power requirements Power consumption Maximum luminous intensity Lighting direction Lighting angle
Continuous lighting time
Lighting duration
Type of battery pack
NP-FA50
Replacing the lamp
Use the Sony XB-3L xenon lamp. Consult your Sony dealer or local authorized Sony service facility for replacement of xenon lamp XB-3L. Order the following parts number when purchasing the xenon lamp : A-1099-823-s. The lamp is hot when it has just burned out. Wait until the lamp cools down before removing it.
7.2 V DC Approx. 3.0 W Approx. 100 cd Horizontal Approx. 15 degrees
Used with camcorder (DCR-HC90)*
35 (30)
NP-FA70 70 (60) (Approx. minutes using fully-charged battery pack) * When used with the LCD panel closed. Duration with the LCD panel open is shown in parentheses. Illumination range Approx. 1 m (3 1/4 ft) : 100 lux, Approx. 2 m (6 1/2 ft) : 25 lux, Approx. 3 m (9 3/4 ft) : 12 lux Color temperature Approx. 3,000 K Average life of lamp Approx. 100 hours Otmhers Dimensions Mass Included items Approx. 31.5 � 57.5 � 40 mm (1 1/4 � 2 3/8 � 1 5/8 inches) (w/h/d) Approx. 30 g (1.1 oz) Video light (1) Pouch (1) Set of printed documentation
1 Remove the front cover by inserting someting like a coin after making sure that the unit is cool enough to handle. 2 Replace the lamp. 1 Cover the old lamp with the tube supplied with the new lamp for replacement and pull the tube out to replace the old lamp. 2 Insert the new lamp into the socket straightly. * Do not tilt the lamp. 3 Insert the pawls on the front cover and attach it.
Notes
� The lamp is hot when it has just burned out. Make sure that the lamp is cool enough to handle. � To prevent the lamp from being smudged with fingerprints, handle it with a dry cloth. If the lamp is smudged, wipe it completely clean.
1
2
1
Design and specifications are subject to change without notice.
2
3
PARTS LIST
Ref. No. 1 2 3 Part No. Description
A-1092-061-A LIGHT ASSY A-1099-823-A LAMP (SERVICE USE), XENON 3-082-390-01 POUCH 2-515-130-11 MANUAL, INSTRUCTION (ENGLISH, FRENCH, SPANISH, ITALIAN) (US, CND, AEP) 2-515-130-21 MANUAL, INSTRUCTION (GERMAN, DUTCH, PORTUGUESE, SWEDISH) (AEP) 2-515-130-31 MANUAL, INSTRUCTION (RUSSIAN, ARABIC, TRADITIONAL CHINESE, SIMPLIFIED CHINESE, KOREAN) (AEP, CH)
VIDEO LIGHT
�
Abbreviation CH : Chinese model
CND : Canadian model
HVL-HL1 9-876-785-11
2005A0500-1 © 2005. 1
Sony EMCS Co.
Published by DI Technical Support Section
|
|
|
> |
|
