1-3-31. EJ Arm 1. Removal procedure 1) Remove the hook 1 of the tension coil spring (EJ arm) 3 that is hooked on the round hole A. 2) Remove the EJ arm and the tension coil spring (EJ arm) 2 all together in the direction of the arrow. 3) Remove the tension coil spring (EJ arm) 3 from the EJ arm 4. 2. Attachment procedure 1) Apply grease to the EF arm. Amount of grease: a ball of 1.0 mm diameter of grease 2) Install the tension coil spring (EJ arm) 3 into the round hole of the EJ arm 4 with the hook facing upward. 3) Insert the top tip (bent) portion B of the EJ arm 4 into the groove of the mechanical chassis. Insert the dowel C into the round hole of the EJ arm. 4) Insert he tension coil spring 1 into the round hole A of the mechanical chassis with the hook facing upward.
Points to be noted
� When installing the EJ arm, confirm the front side and rear side so that the correct side is selected. � Extension spring (EJ) must not have elongation and opening of hook.
2 EJ arm, Extension spring (EJ) 1 Remove the hook. B
The spring hook faces upward 3 Extension spring (EJ)
The spring hook faces upward
A 4 EJ arm
Groove of the mechanical chassis Dowel C
Apply Grease Points to be noted
Apply grease when installing it Amount of grease: a ball of 1.0 mm diameter of grease EJ arm
EJ arm
Extension spring (EJ)
Apply grease

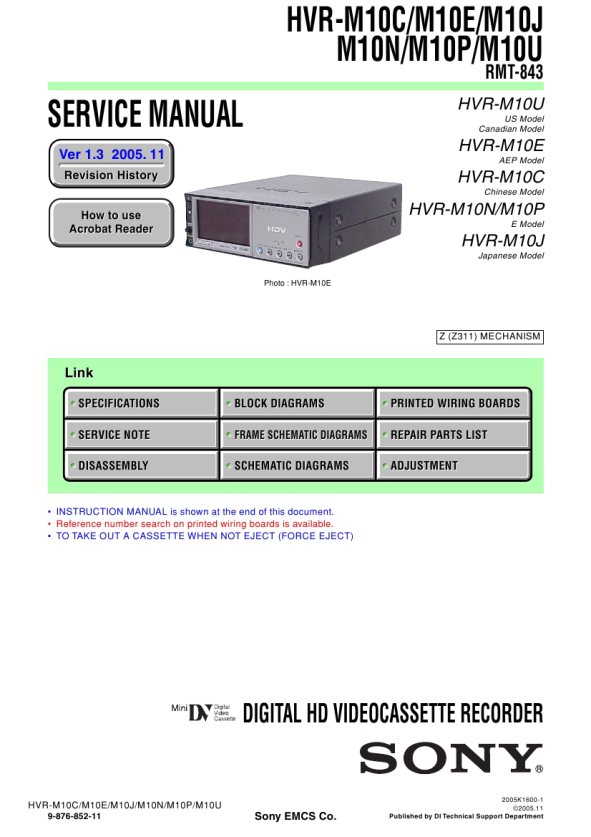

HVR-M10C/M10E/M10J/M10N/M10P/M10U 6-42
|
|
|
> |
|
