SONY ICFB200
Instrukcja Serwisowa

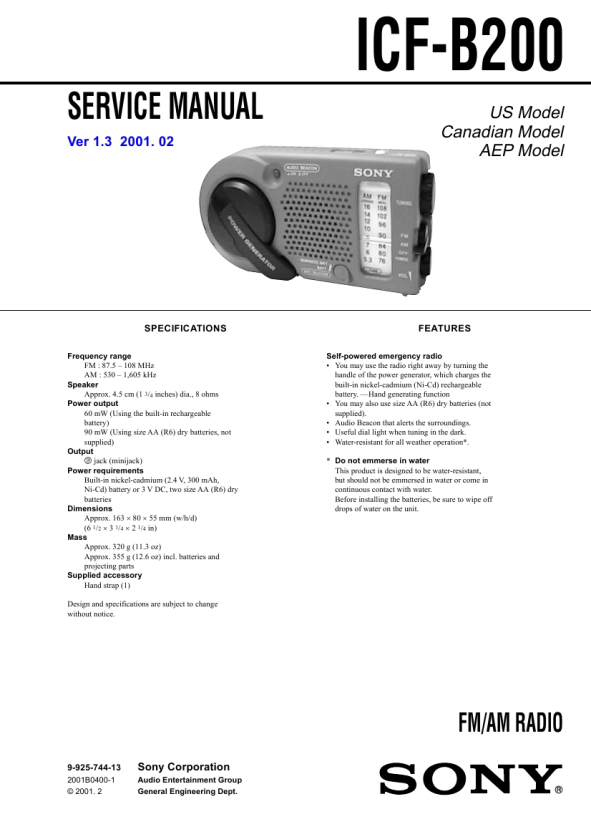

ICF-B200
SERVICE MANUAL
Ver 1.3 2001. Ver 1.0 2001. 01 02

US Model Canadian Model AEP Model

SPECIFICATIONS
Frequency range FM : 87.5 � 108 MHz AM : 530 � 1,605 kHz Speaker Approx. 4.5 cm (1 3/4 inches) dia., 8 ohms Power output 60 mW (Using the built-in rechargeable battery) 90 mW (Using size AA (R6) dry batteries, not supplied) Output v jack (minijack) Power requirements Built-in nickel-cadmium (2.4 V, 300 mAh, Ni-Cd) battery or 3 V DC, two size AA (R6) dry batteries Dimensions Approx. 163 � 80 � 55 mm (w/h/d) (6 1/2 � 3 1/4 � 2 1/4 in) Mass Approx. 320 g (11.3 oz) Approx. 355 g (12.6 oz) incl. batteries and projecting parts Supplied accessory Hand strap (1) Design and specifications are subject to change without notice.

FEATURES
Self-powered emergency radio � You may use the radio right away by turning the handle of the power generator, which charges the built-in nickel-cadmium (Ni-Cd) rechargeable battery. �Hand generating function � You may also use size AA (R6) dry batteries (not supplied). � Audio Beacon that alerts the surroundings. � Useful dial light when tuning in the dark. � Water-resistant for all weather operation*. * Do not emmerse in water This product is designed to be water-resistant, but should not be emmersed in water or come in continuous contact with water. Before installing the batteries, be sure to wipe off drops of water on the unit.

FM/AM RADIO
9-925-744-13
2001B0400-1 © 2001. 2

Sony Corporation
Audio Entertainment Group General Engineering Dept.

1
