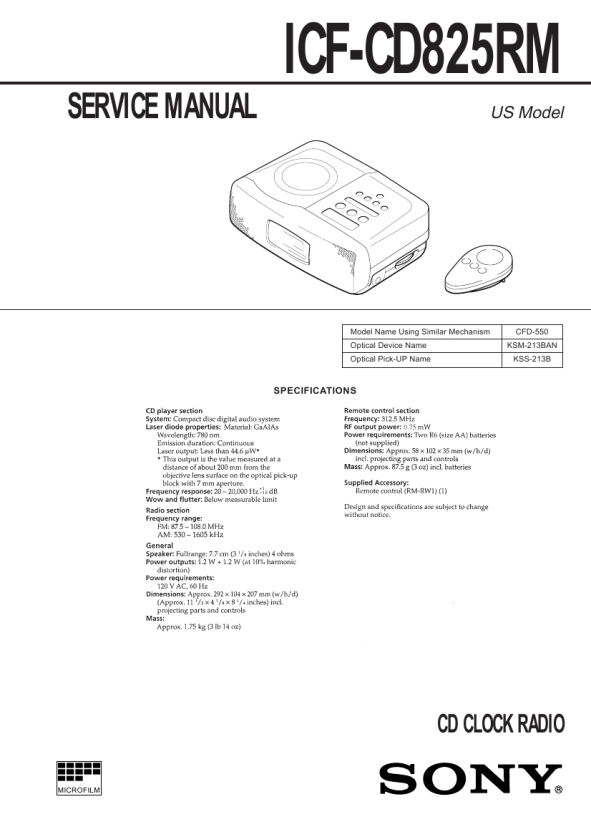

SONY ICFCD825RM
Instrukcja Serwisowa

DIAL POINTER SETTING
Note: Follow the assembly procedure in the numerical order given.

CV1
3 Turn the shaft CV1 to the arrow direction from the pattern side perfectly (Fig. 3).

4 Set the MAIN board.

(Fig. 3)

2 Fit A portion and fit a claw to the hole of axle side and catch in to pointer gear (Fig. 2).

pointer
A

claw

(Fig. 2) pointer

marker (Fig. 1)
1 Set the pointer at the marker line (Fig. 1).

�8�
