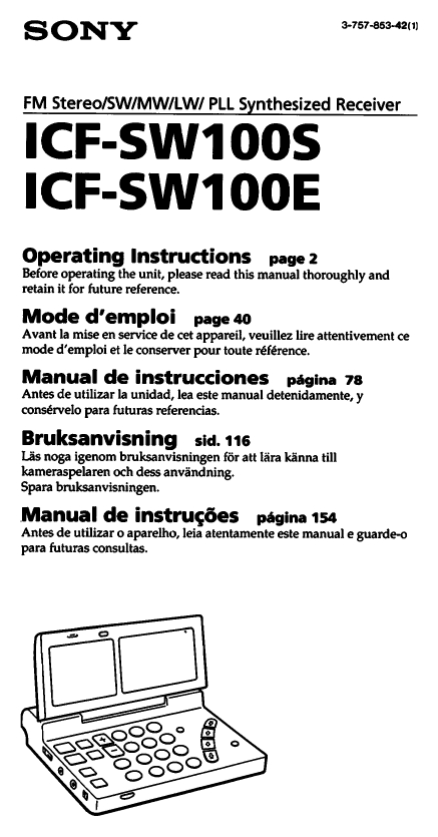

SONY ICF-SW100S
Instrukcja Obsługi

ICF-SW100S

features
� WORLD TIME CLOCK is a Universal Time Coordinator (UTC) for setting

specifications
CIRCUIT SYSTEM: LW/MW/SW: Dual Conversion Superheterodyne

current local time and the time difference between your location and any other, adjustable by setting to the names of major cities around the world
� 24-CITY NAME/TIME DISPLAY has rewritable function allowing change

of cities as desired
vSTATION NAME TUNING/EDITING feature provides for tuning and re-

FM: Single Conversion Superheterodyne FREQUENCY RANGE: FM: 76-108MHz LW/MW/SW 150-29.999MHz ANTENNA SYSTEM: FM/SW: Telescoping Antenna AM: Built-In Ferrite Bar Antenna INPUTS: DC-In, 3V OUTPUTS: Headphone Jack SPEAKER: 1 1�2" (40mm)
POWER OUTPUT: Speaker: 250mW at 8 ohms

naming the display label of stations when they are deleted or replaced
� PLL QUARTZ FREQUENCY DIGITAL SYNTHESIZED TUNING is the world�s

Headphone: 5mW at 16 ohms
POWER REQUIREMENTS: �AA� x 2 Batteries (not incl) BATTERY LIFE: Approx 20 hrs COLOR: GRAY: DIMENSIONS (WHD): 4 3�8" x 15�16" x 2 7�8" (111 x 24 x 73mm) WEIGHT: 7 3�4 oz (220g) incl batteries SUPPLIED ACCESSORIES: Short Wave Guide Book, AC Power Adaptor, Power

most accurate drift-free tuning method and makes tuning-in desired station simple and precise
� DUAL CONVERSION SUPER HETERODYNE TUNER CIRCUITRY provides

high sensitivity and interference rejection
� 50 STATION MEMORY PRESETS let you select up to 50 stations and tune

them in automatically at a button�s touch
� AUTO SCAN TUNING brings in available stations one at a time and lets

Supplied Active Antenna, Headphones, Carrying Case OPTIONAL ACCESSORIES: DCC-E130L Car Adaptor
©2002 Sony Electronics Inc. Reproduction in whole or in part without written permission is prohibited. All rights reserved. Sony and World Band Radio are trademarks of Sony. Features and specifications are subject to change without notice. Non-metric weights and measures are approximate.

you listen for a few seconds before deciding to let scanning continue or hold on any station
� 1KHZ STEP TUNING can be set to automatically move up or down the

AM and shortwave bandsin one kilohertz increments for exact station frequency tuning
vTONE/MONO-STEREO SELECTION serves dual purposes. In AM it acts as

tone selector switch, in FM it functions as Mono/Stereo selector
� DUAL CLOCK/ALARM lets you set the integrated clock to wake you to

two different radio stations, and also let you fall asleep to the radio, while shutting itself off automatically
� FEATHER TOUCH CONTROLS need the slightest touch to activate the

radio and select frequencies and functions
� LED TUNING INDICATOR provides precise indication for most accurate

center-frequency tuning
� HEADPHONE JACK allows for FM stereo reception and affords private

listening enjoyment and improved sound clarity in noisy environments
� DC-IN JACK lets you use an optional AC adaptor to conserve battery life � ULTRA COMPACT SIZE lets you slip this lightweight radio into a jacket

pocket or briefcase
