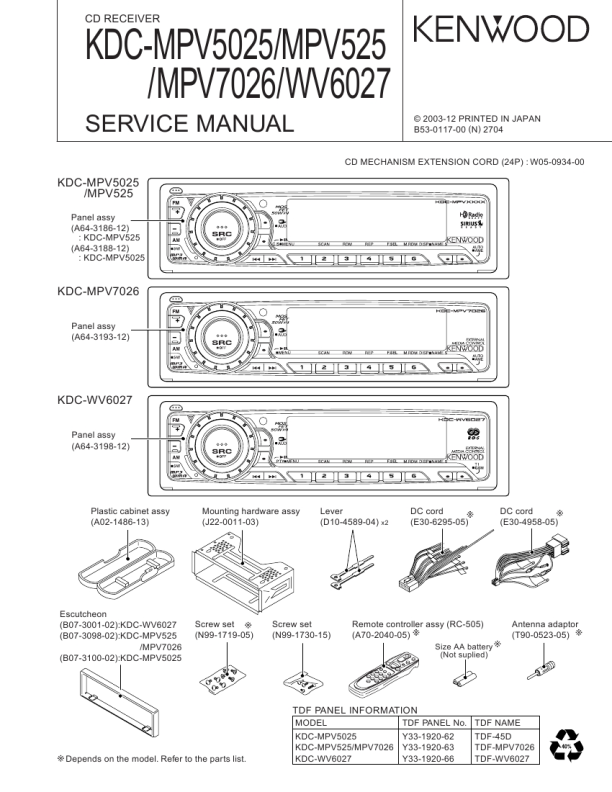

KDC-MPV5025/MPV525 KDC-MPV7026/WV6027
DISASSEMBLY FOR REPAIR
How to Disassemble (PANEL ASSY)
1) Remove four screws (A). 2) While holding the section (B) indicated with arrows, pull and remove PANEL ASSY.
How to install knob (SRC)
1) Place knob (F) and knob (G) in the positions indicated in the diagram below. 2) While keeping these positions, use a piece of adhesive tape (H) to hold knobs in position, as shown in the diagarma.
A x2
3) Set the rotary (J) position as shown in the diagram. 4) While keeping the letters �SRC� horizontally in position, set it to the rotary on the panel. 5) Remove the adhesive tape (H).
A x2
F G
H
B B
B
B
J
3) Pull SWITCH UNIT (C) as indicated in the diagram and remove knob (D). (The knob (D) is attached to the rotary with hook (E) and it is not possible to remove hook (D) only.)
