6. Input All white l (100 IRE) of [480p :D2] into the component input. 7. Adjust value of the AD_GAIN_D3_Y as follows with reading 2 registers of sony_input_r_y_min and sony_input_r_y_max from the ECS. Reference item sony_input_r_y_min+sony_input_r_y_max 2 sony_input_r_y_min sony_input_r_y_max Adjustment Adjustment condition register 178 ± 1 AD_OFFSET_D2_Y 178 +-5 0 178 +5 -0
4. Adjust value of the AD_OFFSET_D4_PR as follows with reading 2 registers of sony_input_g_cr_min and sony_input_g_cr_max from the ECS. Reference Adjustment Adjustment item condition register sony_input_g_cr_min+sony_input_g_cr_max 128 ± 1 AD_OFFSET_D4_PR 2 sony_input_g_cr_min sony_input_g_cr_max 128 +-5 0 128 +5 -0
5. Adjust value of the AD_OFFSET_D4_PB as follows with reading 2 registers of sony_input_b_cb_min and sony_input_ b_cb _max from the ECS. Reference Adjustment Adjustment item condition register sony_input_b_cb_min+sony_input_b_cb_max 128 ± 1 AD_OFFSET_D4_PB 2 sony_input_b_cb_min sony_input_b_cb_max 128 +-5 0 128 +5 -0
8. Input All red (50 IRE) of [480p :D2] into the component input. 9. Adjust value of the AD_GAIN_D2_PR as follows with reading 2 registers of sony_input_g_cr_min and sony_input_ g_cr _max from the ECS. Reference Adjustment Adjustment item condition register sony_input_g_cr_min+sony_input_g_cr_max 230 ± 1 AD_OFFSET_D2_PR 2 sony_input_g_cr_min sony_input_g_cr_max 230 +-5 0 230 +5 -0
6. Input All white l (100 IRE) of [720p :D4] into the component input. 7. Adjust value of the AD_GAIN_D4_Y as follows with reading 2 registers of sony_input_r_y_min and sony_input_r_y_max from the ECS. Reference item sony_input_r_y_min+sony_input_r_y_max 2 sony_input_r_y_min sony_input_r_y_max Adjustment condition 178 ± 2 178 +0 -5 178 +5 -0 Adjustment register AD_OFFSET_D4_Y
10. Input All blue (50 IRE) of [480p :D2] into the component input. 11. Adjust value of the AD_GAIN_D2_PB as follows with reading 2 registers of sony_input_b_cb_min and sony_input_ b_cb _max from the ECS. Reference Adjustment Adjustment item condition register sony_input_b_cb_min+sony_input_b_cb_max 230 ± 1 AD_OFFSET_D2_PB 2 sony_input_b_cb_min 230 +-5 0 sony_input_b_cb_max 230 +5 -0
8. Input All red (50 IRE) of [720p :D4] into the component input. 9. Adjust value of the AD_GAIN_D4_PR as follows with reading 2 registers of sony_input_g_cr_min and sony_input_ g_cr _max from the ECS. Reference Adjustment Adjustment item condition register sony_input_g_cr_min+sony_input_g_cr_max 230 ± 1 AD_OFFSET_D4_PR 2 sony_input_g_cr_min sony_input_g_cr_max 230 +-5 0 -0 230 +5
12. Repeat step 2 to 11 until the detection set value in step 3 to 5, 7, 9 and 11 above are obtained. 13. Perform the Service Save.
2-5. AD calibration adjustment of [720 :D4] input
1. Set the vgport_sel to 1 (YCbCr determination mode) of hardware register. Caution: This item is set 0 automatically when powered on. 2. Input All black signal (0 IRE) of [720p :D4] into the component input. 3. Adjust value of the AD_OFFSET_D4_Y as follows with reading 2 registers of sony_input_r_y_min and sony_input_r_y_max from the ECS. Reference item sony_input_r_y_min+sony_input_r_y_max 2 sony_input_r_y_min sony_input_r_y_max Adjustment Adjustment condition register 16 ± 2 AD_OFFSET_D4_Y 16 +0 -5 16 +5 -0
10. Input All blue (50 IRE) of [720p :D4] into the component input.

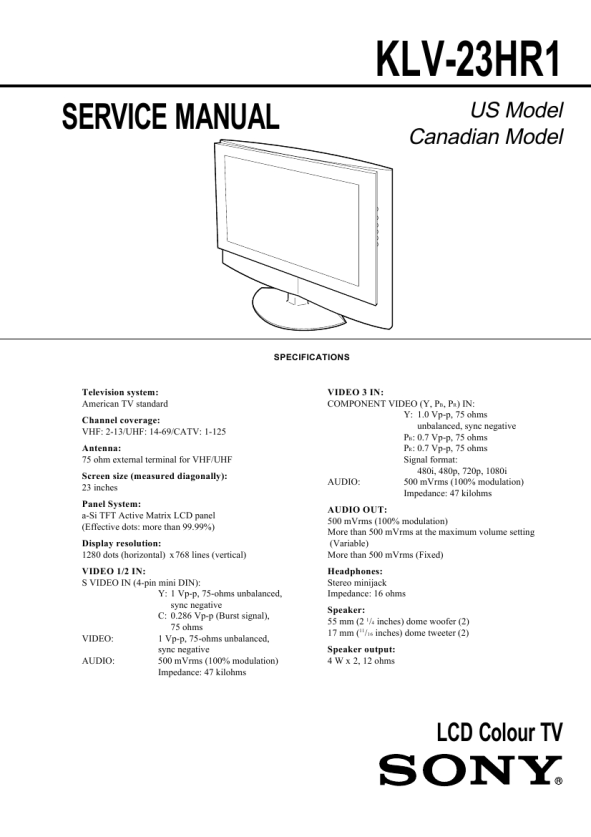

KLV-23HR1 (UC)
2-3
|
|
