2-1-4. AD Adjustment of CVBS Video (NTSC) System
1) Set input to AV1. 2) Input NTSC 50% window Signal 90 IRE in AV1. 3) Set picture quality mode to [PC/GAME]. Send �RGB Level� Command. 4) Adjust Y_OUT_LEVEL until the Green detection value is within a setting value. Detection setting value: 197 ± 3 5) Set Video Signal to NTSC 50% window 20 IRE. 6) Adjust Cb_OFFSET1 until the detection value of Blue becomes same as that of Green. 7) Adjust Cr_OFFSET1 until the detection value of Red becomes same as that of Green. 8) Repeat step 6-7 until it becomes the following detection setting value. Detection setting value: 44 +2 �6 R,G,B detection value dispersion: ± 1 9) Repeat step 2-7 until it is in the detection setting value of 4) and 8). 10) Input NTSC 75% Color Bar signal into AV1. (Fig. 1)
75% Color Bar (A) x (B) x (C) x (D) x Bl Bk
2-1-5. AD Adjustment of CVBS Video (PAL) System
1) Set input to AV1. 2) Input PAL 50% window Signal 90 IRE in AV1. 3) Set picture quality mode to [PC/GAME]. Send �RGB Level� Command. 4) Adjust Y_OUT_LEVEL until the Green detection value is within a setting value. Detection setting value: 197 ± 3 5) Set Video Signal to PAL 50% window 20 IRE. 6) Adjust Cb_OFFSET1 until the detection value of Blue becomes same as that of Green. 7) Adjust Cr_OFFSET1 until the detection value of Red becomes same as that of Green. 8) Repeat step 6-7 until it becomes the following detection setting value. Detection setting value: 44 +2 �6 R,G,B detection value dispersion: ± 1 9) Repeat step 2-7 until it is in the detection setting value of 4) and 8). 10) Input PAL 75% Color Bar signal into AV1. (Fig. 5)
75% Color Bar (A) x (B) x (C) x (D) x Bl Bk
Wh Ye Cy G Mg R
Wh Ye Cy G Mg R
Cautions : The position of (A) excepts between for 1/16 from an edge. Fig. 1
Cautions : The position of (A) excepts between for 1/16 from an edge. Fig. 5
11) Adjust C_OUT_LEVEL until the detection value of (A) becomes same as that of (D), as shown in the figure 2.
ML board CN304 3 pin Blue output (A) (B) Fig. 2 (C) (D)
11) Adjust C_OUT_LEVEL until the detection value of (A) becomes same as that of (D), as shown in the figure 6.
ML board CN304 3 pin Blue output (A) (B) Fig. 6 (C) (D)
12) Adjust Hue until the detection value of (B) becomes same as that of (C), as shown in the figure 3.
ML board CN304 3 pin Blue output (A) (B) Fig. 3 (C) (D)
13) Repeat step 11-12 until the detection value of (A), (B), (C) and (D) becomes the same, as shown in the figure 4.
ML board CN304 3 pin Blue output (A) (B) Fig. 4 (C) (D)

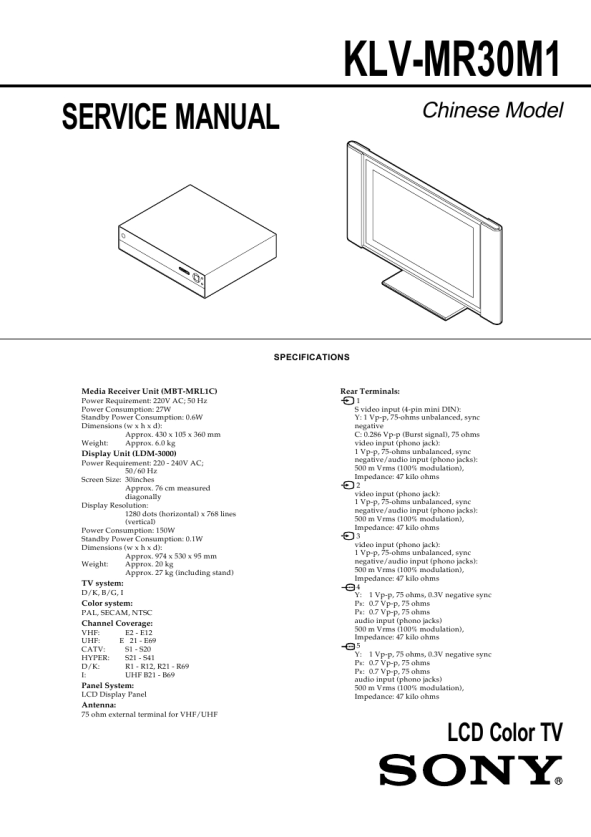

KLV-MR30M1 (CH)
2-2
|
|
|
> |
|
