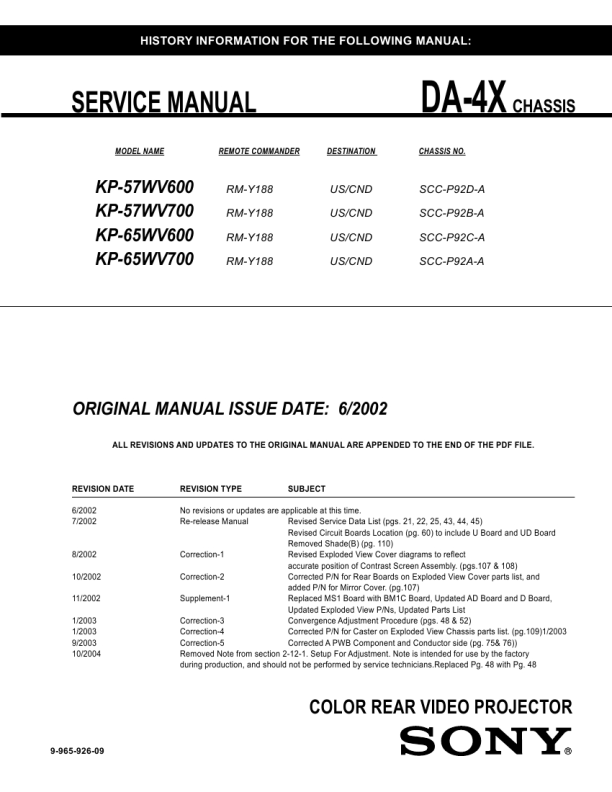

SONY KP-65WV600
Instrukcja Serwisowa

Adjusting the Convergence Manually
The Convergence feature gives you more control over the picture�s convergence than the Flash Focus feature, allowing you to fine-tune the convergence.

� Before using the manual Convergence, you must first perform Flash Focus
(as described on page 44).

z

For details on using the

1 Press MENU to display the Menu. 2 Move the joystick B or b to highlight the Setup icon and press
.

Setup Menu, see page 83.

3 Move the joystick to highlight Convergence and press

.

A pattern of white crosses appears, with a yellow around one of the crosses. Aligned crosses (which do not need adjustment) look white and have little or no red or blue showing. Crosses that are not aligned show red or blue shades beyond their edges.

You can scroll up and down through the 9 x 7 field of crosses to manually converge all portions of the screen.

4 Using the joystick, move the
to adjust. Press . The

to surround a cross that you want changes to red.

5 If the cross that you selected has red edges, move the joystick
until the red image is replaced with a white cross. Once you have finished this (or the cross does not have red edges), press . The changes to blue.

6 If the cross you selected has blue edges, move the joystick until
the blue image is replaced with a white cross. Once you have finished this, press . The changes to yellow again.

SETUP Setup SETUP SETUP SETUP SETUP

7 Repeat steps 4 to 6 to adjust other crosses. When finished, press
MENU to exit the Setup Menu.

45
