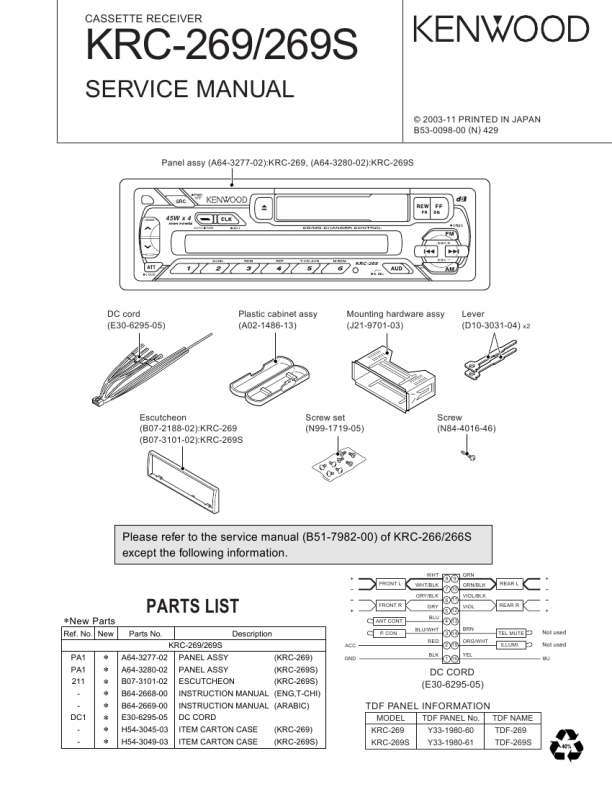

KENWOOD KRC269
Instrukcja Serwisowa

CASSETTE RECEIVER

KRC-269/269S
SERVICE MANUAL
© 2003-11 PRINTED IN JAPAN B53-0098-00 (N) 429
Panel assy (A64-3277-02):KRC-269, (A64-3280-02):KRC-269S

45W x 4
AUTO AME

KRC-269

DC cord (E30-6295-05)

Plastic cabinet assy (A02-1486-13)

Mounting hardware assy (J21-9701-03)

Lever (D10-3031-04) x2

Escutcheon (B07-2188-02):KRC-269 (B07-3101-02):KRC-269S

Screw set (N99-1719-05)

Screw (N84-4016-46)

Please refer to the service manual (B51-7982-00) of KRC-266/266S except the following information.
WHT FRONT L WHT/BLK 7 10 GRY/BLK 5 12 6 11 89 GRN GRN/BLK VIOL/BLK VIOL REAR R REAR L

PARTS LIST
�New Parts
Ref. No. New PA1 PA1 211 DC1 Parts No. KRC-269/269S A64-3277-02 A64-3280-02 B07-3101-02 B64-2668-00 B64-2669-00 E30-6295-05 H54-3045-03 H54-3049-03 PANEL ASSY PANEL ASSY ESCUTCHEON Description
ACC

FRONT R ANT CONT P. CON

GRY BLU BLU/WHT RED BLK

4 13 3 14

BRN ORG/WHT YEL

TEL MUTE ILLUMI

Not used Not used
BU

2 15 1 16

� � � � � � � �

(KRC-269) (KRC-269S) (KRC-269S)

GND

DC CORD (E30-6295-05)

INSTRUCTION MANUAL (ENG,T-CHI) INSTRUCTION MANUAL (ARABIC) DC CORD ITEM CARTON CASE ITEM CARTON CASE (KRC-269) (KRC-269S)

TDF PANEL INFORMATION
MODEL KRC-269 KRC-269S TDF PANEL No. Y33-1980-60 Y33-1980-61 TDF NAME TDF-269 TDF-269S
