KENWOOD KRC369
Instrukcja Serwisowa

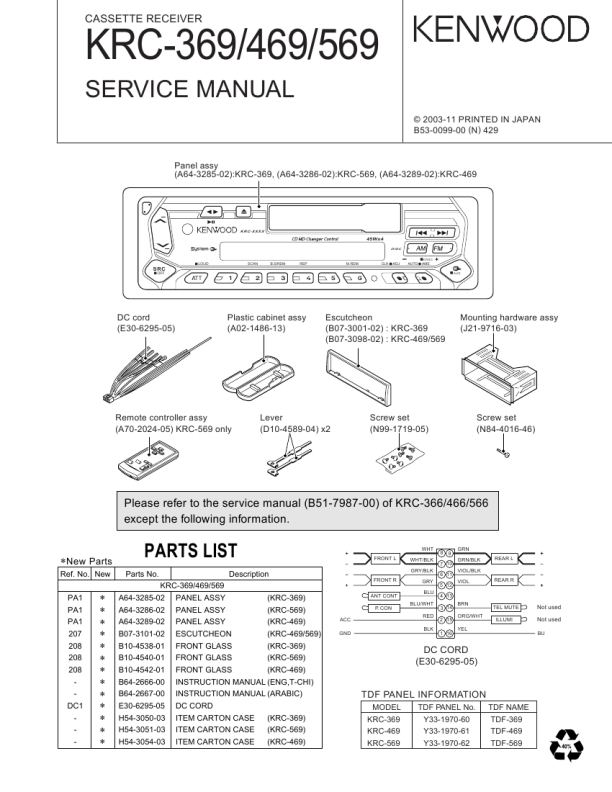

CASSETTE RECEIVER

KRC-369/469/569
SERVICE MANUAL
© 2003-11 PRINTED IN JAPAN B53-0099-00 (N) 429
Panel assy (A64-3285-02):KRC-369, (A64-3286-02):KRC-569, (A64-3289-02):KRC-469

KRC-XXXX

45Wx4
DISC

LOUD

SCAN

B.S/RDM

REP

M.RDM

CLK

ADJ

AUTO

CRSC AME AUD

SRC
OFF

DC cord (E30-6295-05)

Plastic cabinet assy (A02-1486-13)

Escutcheon (B07-3001-02) : KRC-369 (B07-3098-02) : KRC-469/569

Mounting hardware assy (J21-9716-03)

Remote controller assy (A70-2024-05) KRC-569 only

Lever (D10-4589-04) x2

Screw set (N99-1719-05)

Screw set (N84-4016-46)

Please refer to the service manual (B51-7987-00) of KRC-366/466/566 except the following information.

PARTS LIST
�New Parts
Ref. No. New PA1 PA1 PA1 207 208 208 208 DC1 Parts No. KRC-369/469/569 A64-3285-02 PANEL ASSY A64-3286-02 A64-3289-02 B07-3101-02 B10-4538-01 B10-4540-01 B10-4542-01 B64-2666-00 B64-2667-00 E30-6295-05 H54-3050-03 H54-3051-03 H54-3054-03 PANEL ASSY PANEL ASSY ESCUTCHEON FRONT GLASS FRONT GLASS FRONT GLASS Description (KRC-369) (KRC-569) (KRC-469) (KRC-469/569) (KRC-369) (KRC-569) (KRC-469)
ACC GND FRONT L FRONT R ANT CONT P. CON

WHT WHT/BLK GRY/BLK GRY BLU BLU/WHT RED BLK

7 10 6 11 5 12 4 13 3 14 2 15 1 16

89

GRN GRN/BLK VIOL/BLK VIOL REAR R REAR L

� � � � � � � � � � � � �

BRN ORG/WHT YEL

TEL MUTE ILLUMI

Not used Not used
BU

DC CORD (E30-6295-05)

INSTRUCTION MANUAL (ENG,T-CHI) INSTRUCTION MANUAL (ARABIC) DC CORD ITEM CARTON CASE ITEM CARTON CASE ITEM CARTON CASE (KRC-369) (KRC-569) (KRC-469)

TDF PANEL INFORMATION
MODEL KRC-369 KRC-469 KRC-569 TDF PANEL No. Y33-1970-60 Y33-1970-61 Y33-1970-62 TDF NAME TDF-369 TDF-469 TDF-569
