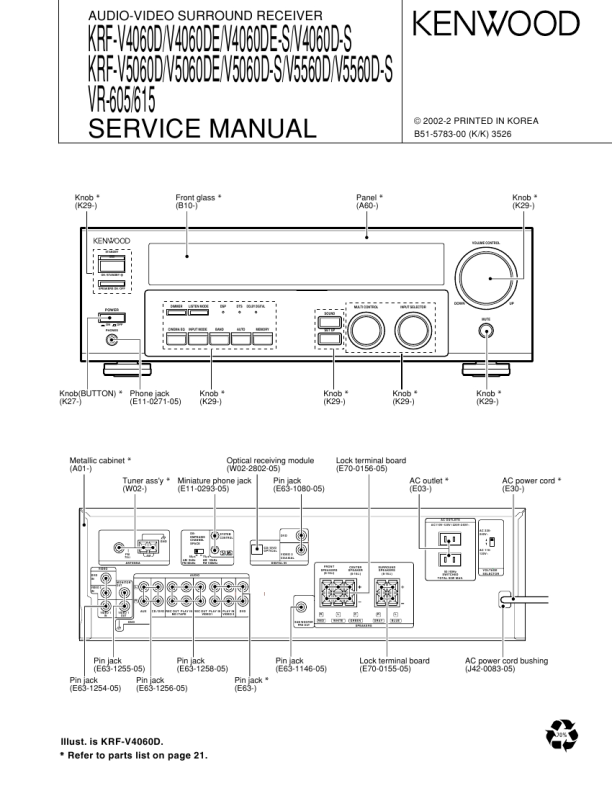

KRF-V4060D/V5060D/V5560D/VR-605/615
CONTENTS / ACCESSORIES / CAUTIONS
Contents
CONTENTS / ACCESSORIES / CAUTIONS............. 2 CIRCUIT DESCRIPTION ............................................3 PC BOARD .............................................................. 10 SCHEMATIC DIAGRAM .......................................... 14 EXPLODED VIEW ....................................................27 PARTS LIST..............................................................28 SPECIFICATIONS ....................................................41
Accessories
Remote control unit (1) Refer to the table on this page below. AM loop antenna (1) (T90-0852-05) FM indoor antenna (1) (T90-0877-05) Batteries (R6/AA) (2)
AC Plug Adaptor (1) (E03-0115-05) Use to adapt the plug on the power cord to the shape of the wall outlet. (Accessory only for regions where use is necessary.)
REMOTE CONTROL vs MODEL MODEL KRF-V4060D KRF-V4060DE KRF-V4060DE-S KRF-V4060D-S KRF-V4060D-S KRF-V5060D KRF-V5060D KRF-V5060DE PARTS # A70-1566-05 A70-1564-05 A70-1566-05 A70-1563-05 A70-1565-05 REMOTE CONTROL # RC-R0623 RC-R0621 RC-R0623 RC-R0620 RC-R0622 DESTINATION ET E1 E2 MX E3T1 Y ET E1 MODEL KRF-V5060D-S KRF-V5060D-S KRF-V5560D KRF-V5560D KRF-V5560D-S KRF-V5560D-S VR-605 VR-615 PARTS # A70-1563-05 A70-1565-05 A70-1564-05 A70-1566-05 A70-1564-05 A70-1566-05 A70-1564-05 A70-1563-05 REMOTE CONTROL # RC-R0620 RC-R0622 RC-R0621 RC-R0623 RC-R0621 RC-R0623 RC-R0621 RC-R0620 DESTINATION MX E3T1 Y E MXH E3T1 KP KP
Cautions
Resetting the Microcomputer
The microcomputer may malfunction (unit cannot be operated, or shows an erroneous display) if the power cord is unplugged while the power is ON, or due to some other external factor. If this happens, execute the following procedure to reset the microcomputer and return the unit to its normal operating condition. � Please note that resetting the microcomputer will clear the contents of the memory and return the unit to the state it was in when it left the factory
Memory back up function
Please note that the following items will be deleted from the unit's memory if the power cord is disconnected from the AC outlet for approximately 3 days. � � � � � � � � � � � Power mode. Input selector settings. Picture output. Speaker ON/OFF. Volume level. BASS, TREBLE, INPUT level. Dimmer level. MD/TAPE settings. Listen mode setting. Speaker settings. SW RE-MIX ON/OFF. � Distance setting. � Input mode setting. � Midnight mode setting. � PRO LOGIC II mode setting. � Broadcast band. � Frequency setting. � � � � Preset stations. Tuning mode. CINEMA EQ ON/OFF. LOUDNESS ON/OFF.
For the U.S.A. and Canada Unplug the power cord from the wall outlet, then plug it back in while holding down the POWER key. For other countries With the power cord plugged in, turn the POWER key OFF. Then, while holding down the ON/STANDBY key, press POWER.
2
|
|
|
> |
|
