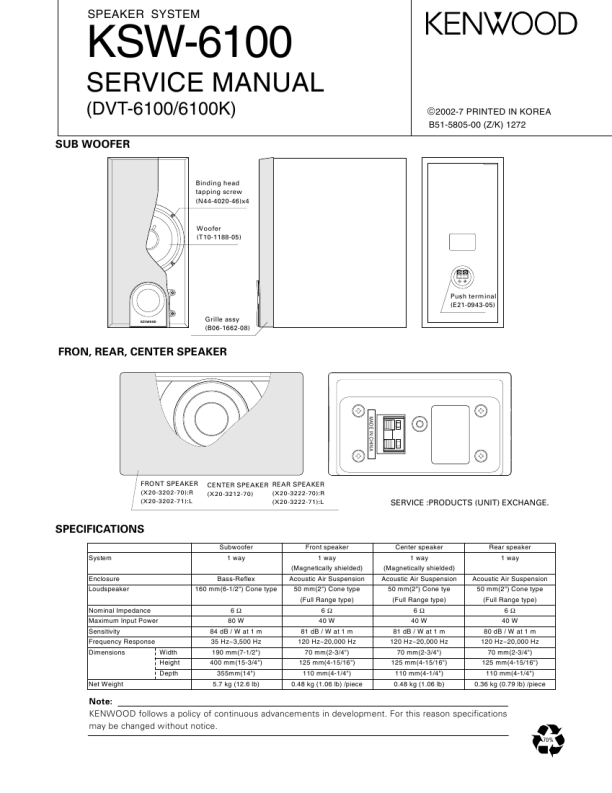

SPEAKER SYSTEM

KSW-6100
SERVICE MANUAL
(DVT-6100/6100K)
SUB WOOFER 2002-7 PRINTED IN KOREA
B51-5805-00 (Z/K) 1272

Binding head tapping screw (N44-4020-46)x4

Woofer (T10-1188-05)

Push terminal (E21-0943-05) Grille assy (B06-1662-08)

FRON, REAR, CENTER SPEAKER

MADE IN CHINA

FRONT SPEAKER
(X20-3202-70):R (X20-3202-71):L

CENTER SPEAKER REAR SPEAKER
(X20-3212-70) (X20-3222-70):R (X20-3222-71):L

SERVICE :PRODUCTS (UNIT) EXCHANGE.

SPECIFICATIONS
Subwoofer System Enclosure Loudspeaker Nominal Impedance Maximum Input Power Sensitivity Frequency Response Dimensions Width Height Depth Net Weight 1 way Bass-Reflex 160 mm(6-1/2") Cone type 6� 80 W 84 dB / W at 1 m 35 Hz~3,500 Hz 190 mm(7-1/2") 400 mm(15-3/4") 355mm(14") 5.7 kg (12.6 lb) Front speaker 1 way (Magnetically shielded) Acoustic Air Suspension 50 mm(2") Cone type (Full Range type) 6� 40 W 81 dB / W at 1 m 120 Hz~20,000 Hz 70 mm(2-3/4") 125 mm(4-15/16") 110 mm(4-1/4") 0.48 kg (1.06 lb) /piece Center speaker 1 way (Magnetically shielded) Acoustic Air Suspension 50 mm(2") Cone tye (Full Range type) 6� 40 W 81 dB / W at 1 m 120 Hz~20,000 Hz 70 mm(2-3/4") 125 mm(4-15/16") 110 mm(4-1/4") 0.48 kg (1.06 lb) Rear speaker 1 way Acoustic Air Suspension 50 mm(2") Cone type (Full Range type) 6� 40 W 80 dB / W at 1 m 120 Hz~20,000 Hz 70 mm(2-3/4") 125 mm(4-15/16") 110 mm(4-1/4") 0.36 kg (0.79 lb) /piece

Note: KENWOOD follows a policy of continuous advancements in development. For this reason specifications may be changed without notice.
